Analog video connection

Analog video feeds from sources such as a Thermal camera or Security camera can be connected to your display by connecting the device to the BNC connector on the display’s power/video/audio cable. The video feed can be viewed using the Video app.

ConnectionsAnalog videoAnalog cameraVideo connection

Note

The connected video is encoded as RTSP and streamed over ethernet to networked displays.

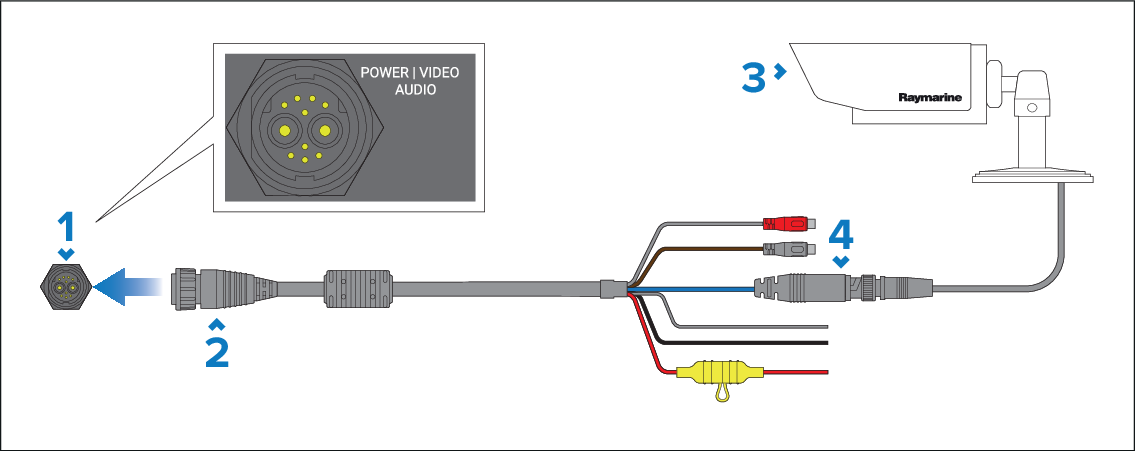

  1. Display’s PWR/Video/Audio connector.

  2. Power/Video/Audio cable (supplied with your display).

  3. Analog video device.

  4. Analog video BNC connector.

For installation details, refer to the documentation provided with your analog video device.

Note

  • Axiom® 2 Pro displays are supplied with a Power/video/audio cable that has a straight connector. A right angled connector cable is also available (part number: A80745 ).

  • The original Axiom® Power/Video/NMEA 0183 cables cannot be used with Axiom® 2 Pro displays.
