Connections overview — S variant displays

The following connections are available on Axiom® 2 Pro S variant displays:

Connections Rear connectorsOverview NMEA 2000 RayNet NetworkGPS AntennaGroundPowerVideoAccessoryHDMI OutTransducers

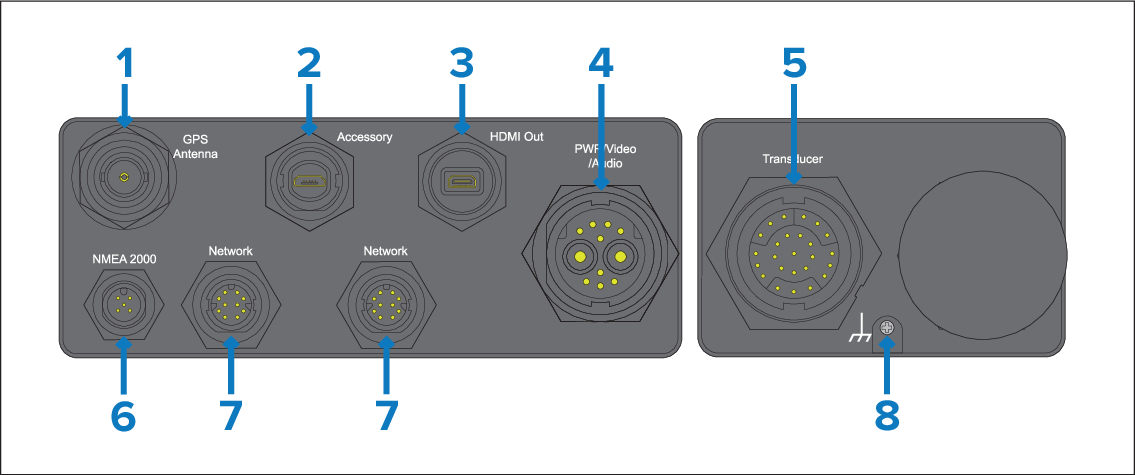

  1. GPS Antenna — Enables connection of an optional external passive GNSS (GPS) antenna (e.g.: GA200, part number A80589).

  2. Accessory — Enables connection of an external card reader, such as the RCR-SD/USB (part number A80440).

  3. HDMI Out — Enables connection of an external HDMI monitor or HDTV, using the Micro HDMI (Type D) to HDMI cable (part number A80723). The external monitor mirrors the display’s screen.

  4. PWR|Video|Audio — The power/video/audio connector provides a connection to a 12 / 24 V dc power supply, an analog video input via BNC connector, and analog audio output via RCA connectors.

    Note

    • Axiom® 2 Pro displays are supplied with a Power/video/audio cable that has a straight connector. A right angled connector cable is also available (part number: A80745 ).

    • The original Axiom® Power/Video/NMEA 0183 cables cannot be used with Axiom® 2 Pro displays.

  5. Transducer — Enables the connection of a CPT-S CHIRP conical beam transducer, via an adapter cable.

    Note

    You can NOT connect RealVision™ Max 3D, RealVision™ 3D, DownVision™ or SideVision™ transducers to an S variant display.

  6. NMEA 2000 — Enables connection to a SeaTalk NG or NMEA 2000 network, using the supplied SeaTalk NG to DeviceNet adaptor cable, or a suitable DeviceNet cable.

  7. Network — The 2 x network connectors enable connection of RayNet devices.

  8. Ground — The optional grounding point should only be used when the display experiences touchscreen interference from nearby equipment. The grounding point should be connected to the same RF ground point as the interfering equipment, or the vessel’s negative battery terminal.
