Connections overview — RVM variant displays

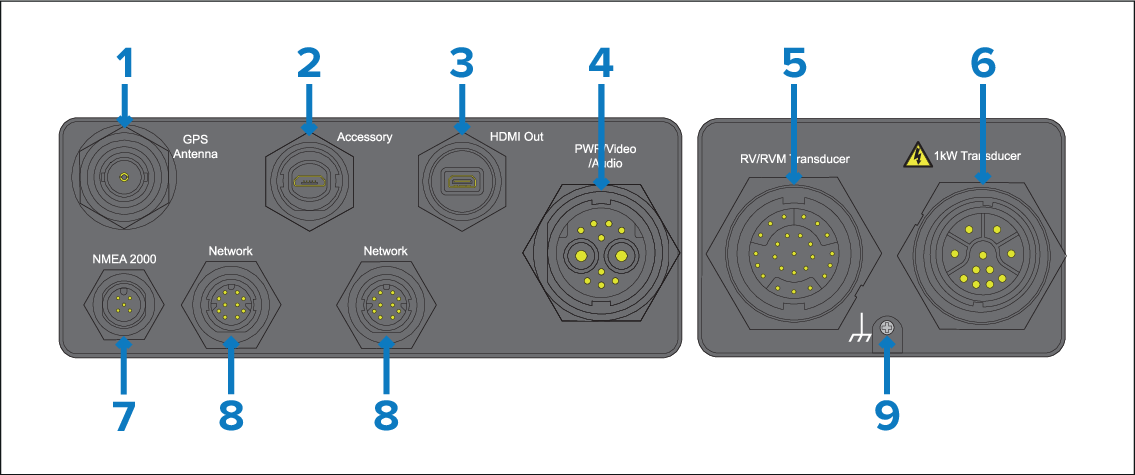

The following connections are available on Axiom® 2 Pro RVM variant displays:

Connections Rear connectorsOverview NMEA 2000 RayNet NetworkGPS AntennaGroundPowerVideoAccessoryHDMI OutTransducers

  1. GPS Antenna — Enables connection of an optional external passive GNSS (GPS) antenna (e.g.: GA200, part number A80589).

  2. Accessory — Enables connection of an external card reader, such as the RCR-SD/USB (part number A80440).

  3. HDMI Out — Enables connection of an external HDMI monitor or HDTV, using the Micro HDMI (Type D) to HDMI cable (part number A80723). The external monitor mirrors the display’s screen.

  4. PWR|Video|Audio — The power/video/audio connector provides a connection to a 12 / 24 V dc power supply, an analog video input via BNC connector, and analog audio output via RCA connectors.

    Note

    • Axiom® 2 Pro displays are supplied with a Power/video/audio cable that has a straight connector. A right angled connector cable is also available (part number: A80745 ).

    • The original Axiom® Power/Video/NMEA 0183 cables cannot be used with Axiom® 2 Pro displays.

  5. RV/RVM Transducer — Used to connect RealVision™ Max 3D or RealVision™ 3D transducers. Also allows connection of DownVision™, SideVision™ or CPT-S CHIRP conical beam transducers, via an adapter cable.

  6. 1kW Transducer — Enables the connection of CHIRP / Traditional (up to 1kW) transducers.

  7. NMEA 2000 — Enables connection to a SeaTalk NG or NMEA 2000 network, using the supplied SeaTalk NG to DeviceNet adaptor cable, or a suitable DeviceNet cable.

  8. Network — The 2 x network connectors enable connection of RayNet devices.

  9. Ground — The optional grounding point should only be used when the display experiences touchscreen interference from nearby equipment. The grounding point should be connected to the same RF ground point as the interfering equipment, or the vessel’s negative battery terminal.
