Accessory connection
The display includes a built in dual slot MicroSD card reader. The Accessory connector can be used to expand storage capabilities by connecting an external memory card reader or external storage device to the display.
ConnectionsAccessoryCard readerUSB (via RCR-SDUSB)External storageExternal storageAccessory connection

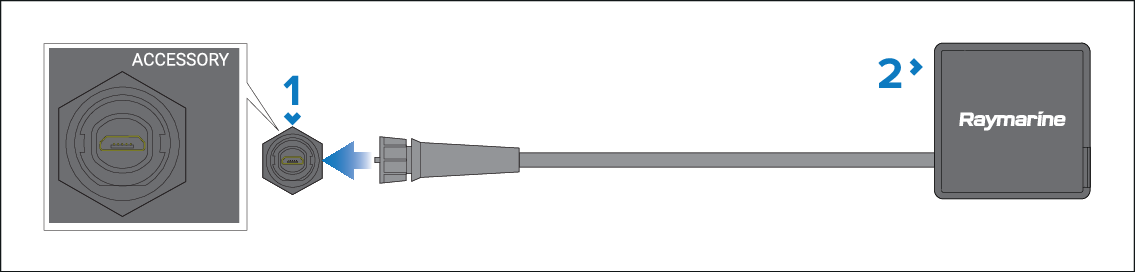

ACCESSORY connector.
Accessory device:
RCR-SDUSB (part number: A80440) — Includes 1x SD card slot (or MicroSD card when using an SD card adaptor) and 1x USB (Type A connector) (e.g. for connection of an external USB hard drive or pen / flash drive). The USB slot on the RCR-SDUSB can also supply 0.5A of current to charge mobile devices.
RCR-1 (part number A80585) — Includes 1x MicroSD card slot.
Bulkhead Mount Micro USB Socket (part number: A80630) — Includes 1x Micro USB (Type Micro A connector) (e.g. for connection of an external USB hard drive or pen / flash drive; an additional adaptor may be required for the connection of some USB devices).
To save screenshots (.png files), External SD or External USB must be selected as the Screenshot File location on the This display tab in the main display settings menu (accessible from Homescreen).
To save video (.mov files ), External SD or External USB must be selected as the Save Files location on the Photo & Video recording tab in the Video app settings menu.
For installation details for these devices, please refer to the instructions provided with your accessory.
