Expanded system

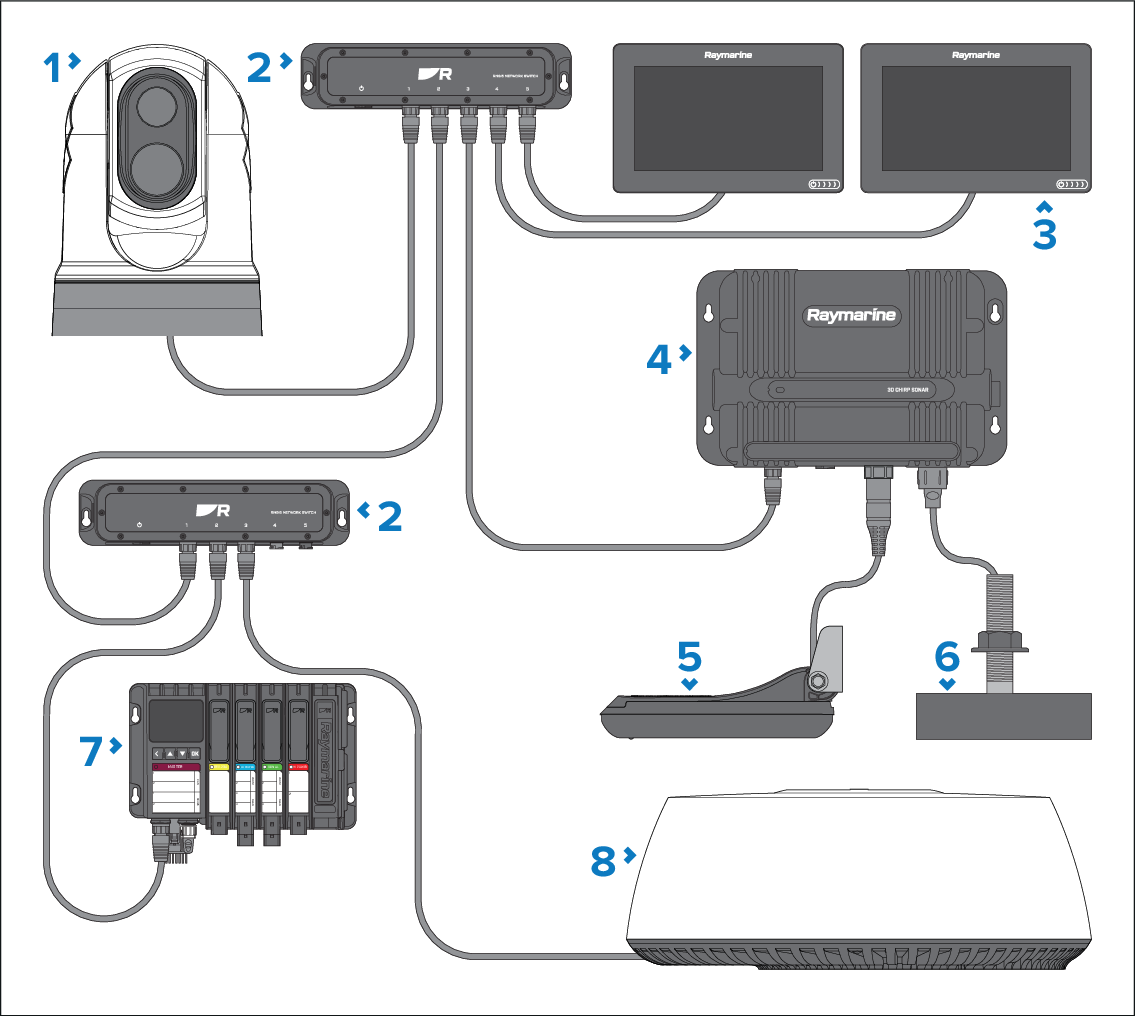

Example of a typical expanded system, including the available connections and types of devices that can be connected.

System diagramTypical systemConnectionsConnectionsTypical system

Note

Power connections are not shown in this illustration. For more information on the correct implementation, refer to the Power Connections section of the Installation Instructions for each respective product.

  1. Thermal camera.

  2. RayNet network switch.

  3. Compatible Raymarine MFD / chartplotter.

  4. Sonar module.

  5. Raymarine RealVision® transducer.

  6. CHIRP transducer.

  7. Digital Control System (e.g. YachtSense DCS).

  8. Radar scanner (e.g. Quantum-Series).
