Typical system

The following illustration shows an example of an i70 SeaTalk NG system.

System examplesTypical system

Note

This system is shown as an example only and may differ from your planned installation.

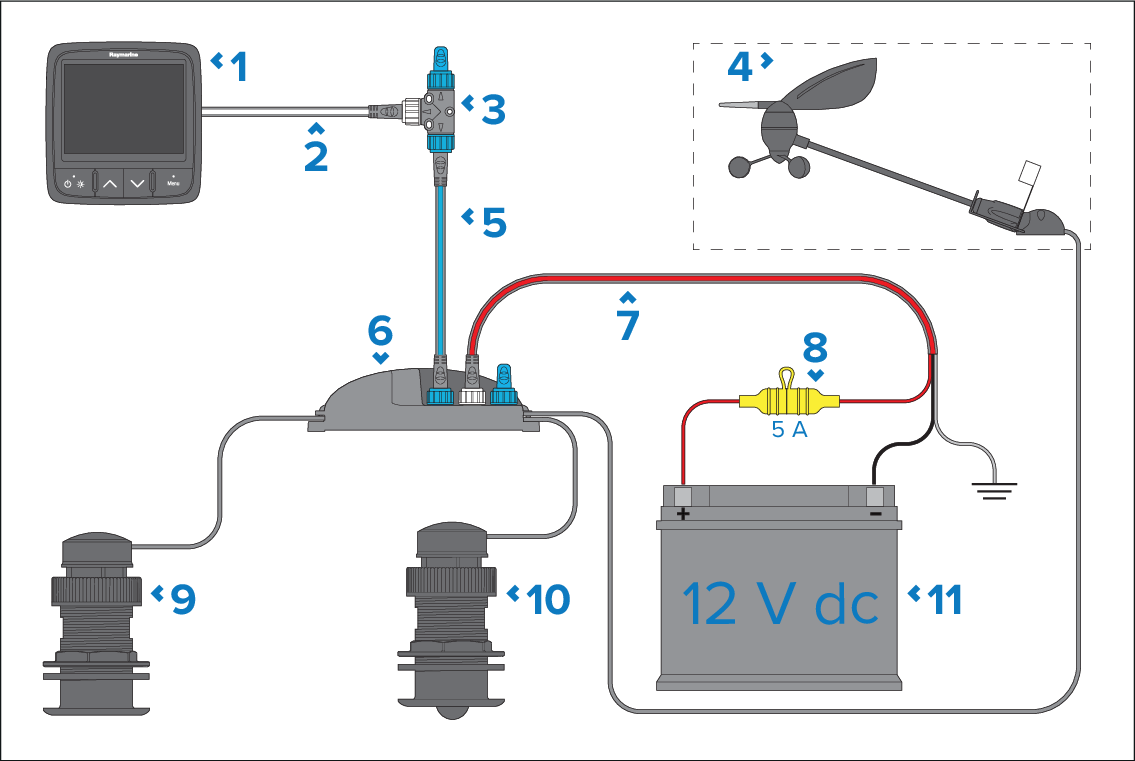

Example: Simple environmental data system

  1. i70 Instrument display.

  2. SeaTalk NG spur cable.

  3. SeaTalk NG T-piece connector with Terminator fitted.

  4. Wind transducer (Analog).

  5. SeaTalk NG backbone cable.

  6. iTC-5 with terminator fitted.

  7. SeaTalk NG power cable.

  8. 5 amp fuse in waterproof fuse holder.

  9. Depth transducer (Analog).

  10. Speed / Temperature transducer (Analog).

  11. 12 V dc power supply.
