Expanded system

System examplesExpanded system

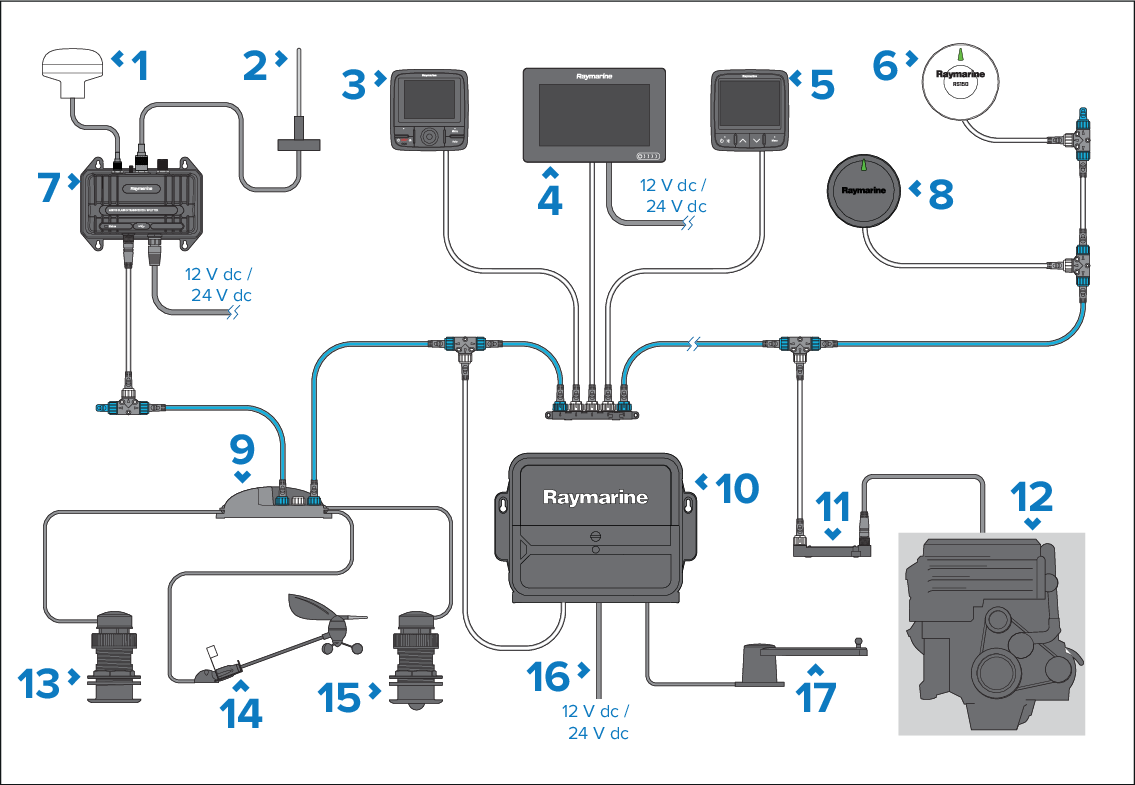

Example: Expanded system

  1. AIS dedicated GNSS (GPS) receiver.

  2. VHF antenna.

  3. SeaTalk NG Pilot controller (e.g.: p70R).

  4. MFD (e.g.: Axiom+ 7).

  5. i70 instrument display.

  6. GNSS (GPS) receiver (e.g.: RS150).

  7. AIS receiver / transceiver (e.g.: AIS700).

  8. Evolution autopilot (e.g.: EV-1).

  9. iTC-5.

  10. Autopilot control unit (e.g.: ACU-400).

  11. ECI-100.

  12. Vessel / Engine systems.

  13. Depth transducer (Analog).

  14. Wind transducer (Analog).

  15. Speed / Temperature transducer (Analog).

  16. 12 V dc / 24 V dc power supply (supplying 12 V dc to the SeaTalk NG backbone via the ACU.

  17. Rudder reference transducer.

Note

Depending on engine type, it may be possible to connect the engine system directly to the SeaTalk NG backbone using a SeaTalk NG to DeviceNet adaptor cable. However the data available will be restricted to supported, standard NMEA 2000 data only.
