DownVision and CPT-S-Series transducer connection

DownVision and CPT-S-Series transducers can be connected to an Axiom+ RV 3D display’s Transducer (Sonar Only) connection using the RV 25-pin to DV 9-pin adaptor cable (part number: A80490).

Connections Transducer DownVision transducersCPT-S-Series transducers

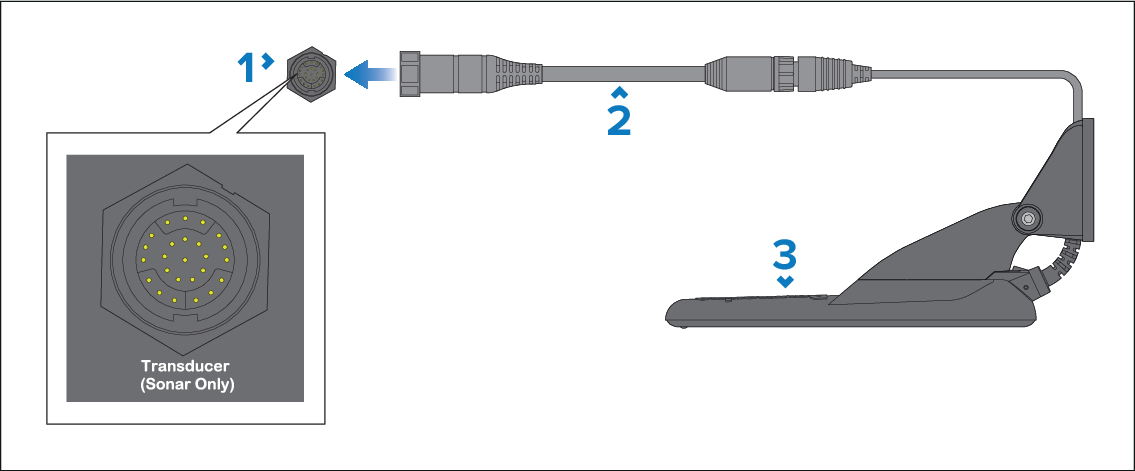

1. Display’s Transducer (Sonar Only) 25-pin connector.

2. RV 25-pin to DV 9-pin adaptor cable (part number: A80490).

3. Transducer (DownVision transducer illustrated).

For a list of compatible transducers refer to:

• Compatible transducers
