RealVision transducer connection

RealVision 3D transducers can be connected directly to an Axiom+ RV 3D display’s Transducer (Sonar Only) connection using the cable(s) supplied with the transducers.

Connections Transducer RealVision 3D transducersRealVision Max 3D transducers

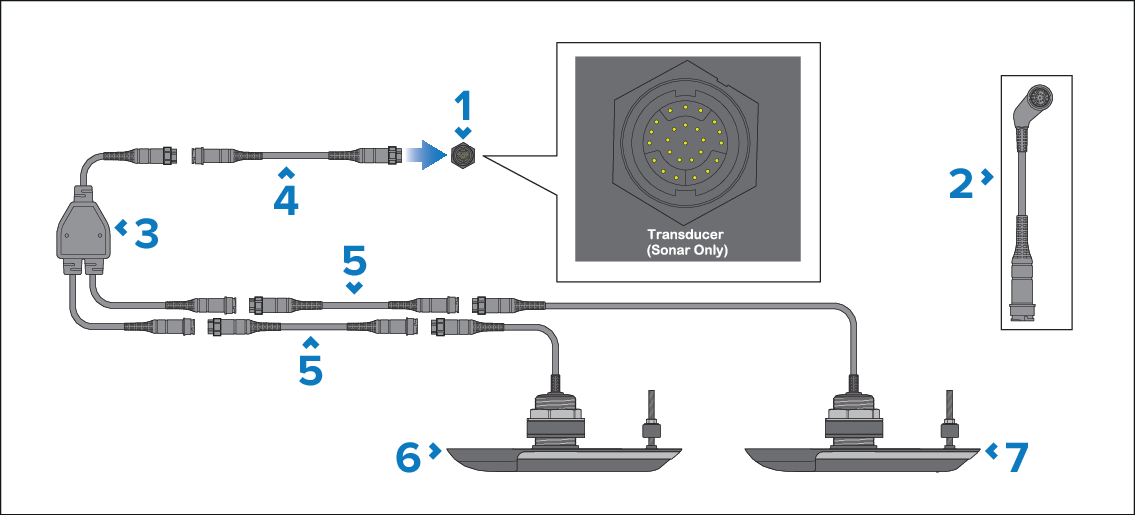

Figure 1. Example — RealVision 3D split pair transducer connections

  1. Display’s Transducer (Sonar Only) 25-pin connector.

  2. Optional right angled adaptor (part number: A80515) supplied separately (used to reduce the space required behind display).

  3. ‘Y’ cable (supplied with split pair transducer packs)

  4. 8 m (26.2 ft) extension cable (supplied with split pair transducer packs)

  5. Optional extension cables can be fitted between the transducer and ‘Y’ cable if required, or between supplied extension cable and display.

  6. Transducer, e.g.: RV-412P.

  7. Transducer, e.g.: RV-412S.

For a list of compatible transducers refer to:
