Attaching and securing the antenna

Procedure for attaching and securing the antenna to the pedastal.

MountingRadarMountingAntenna

Before attaching the antenna to the pedestal unit, ensure that:

  • The pedestal base is securely fixed to the platform.

  • Power and data cables are connected securely and routed correctly, but are NOT powered.

  • The pedestal power switch is in the OFF position.

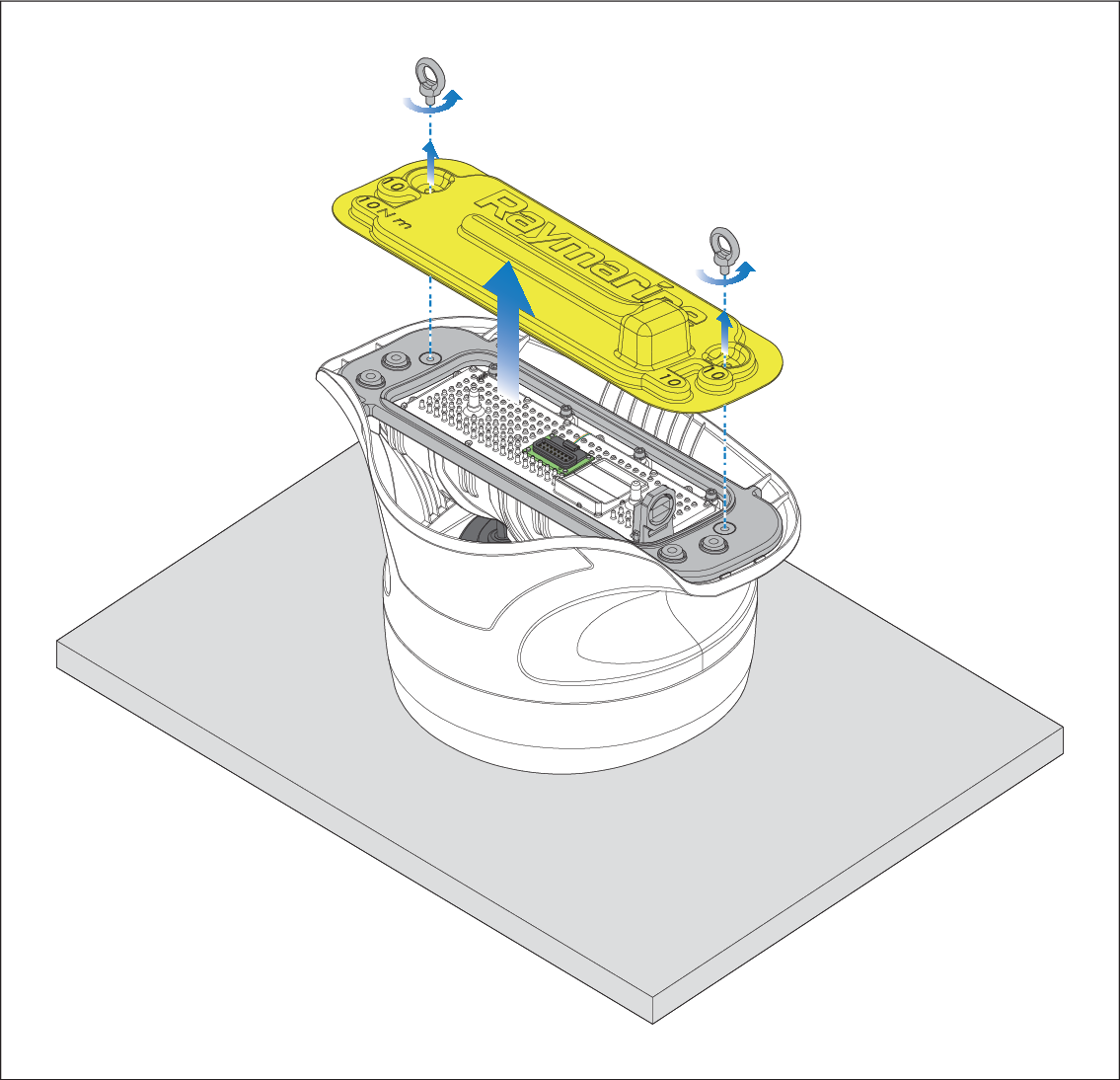

  1. Unscrew the eyebolts and remove the transit cover.
    Important

    Take care not to damage the open array’s delicate contacts when removing the cover.

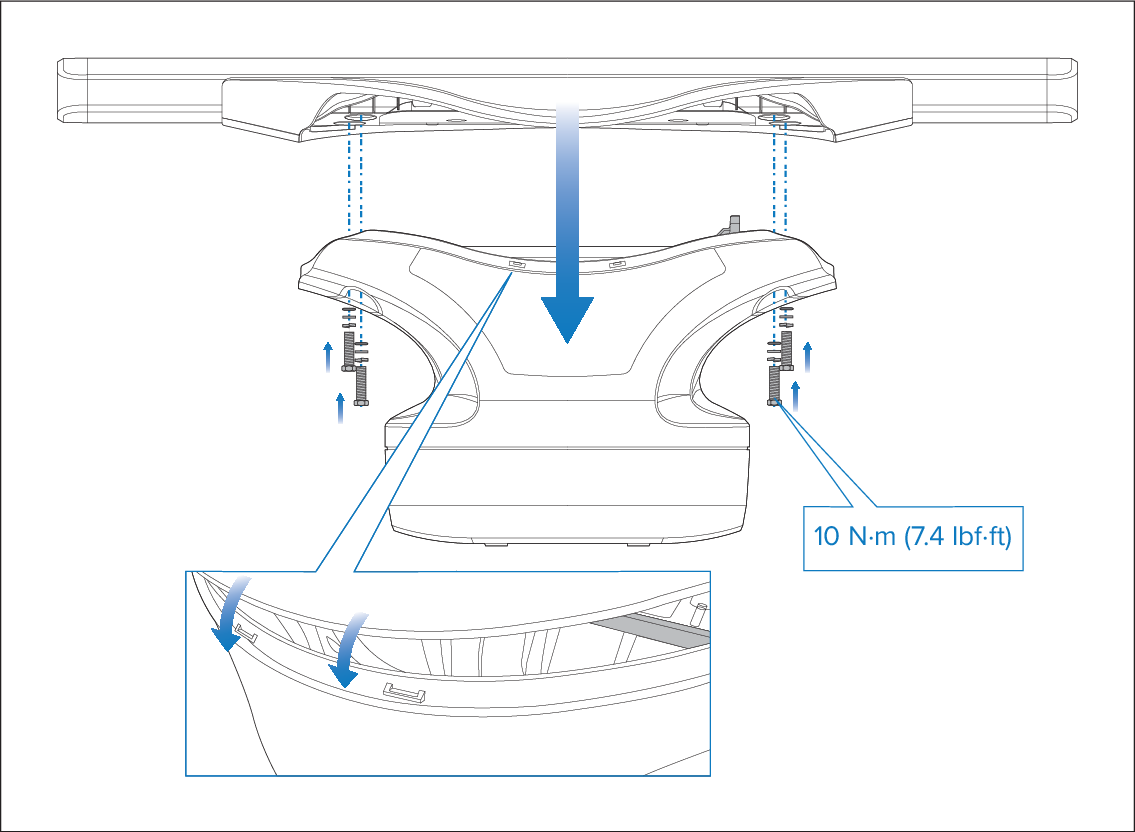

  2. Referring to the following illustration, lower the antenna onto the pedestal, placing the front on first and then clipping it in place.
  3. Using the 4 hex bolts and associated washers and O-rings, secure the antenna to the pedestal. Tighten each nut to 10 N·m (7.4 lbf·ft).
