SeaTalkng connection

The display can be connected to a SeaTalkng® backbone, using the DeviceNet connector included in the Power/NMEA 2000 cable and an adaptor cable (not supplied).

Important

An Element display can NOT be connected to the same SeaTalkng® backbone as a Multifunction display. Examples of MFDs include Axiom, or a Series, c Series, e Series, eS Series, or gS Series displays. Further, because the Element display does NOT have a RayNet connection, it is not possible to network it in any way with a Multifunction display (MFD).

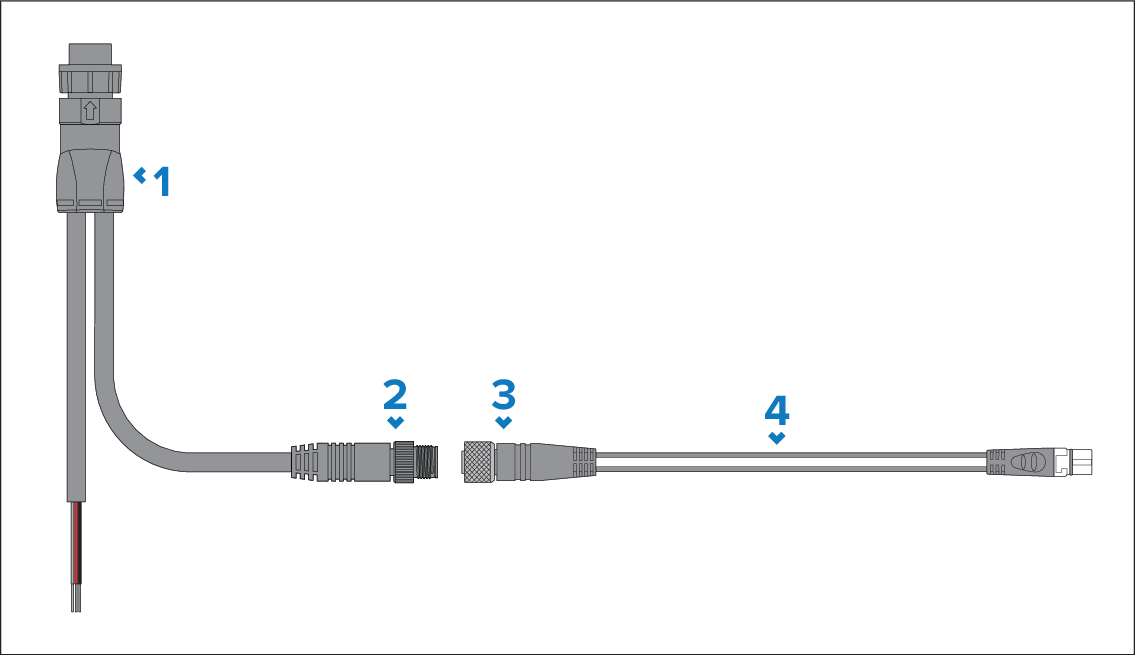

ConnectionSeaTalkng

  1. Supplied power/NMEA 2000 cable.

  2. DeviceNet (Micro-C 5–pin male) cable connector.

  3. DeviceNet (5–pin female) cable connector.

  4. SeaTalkng® to DeviceNet adaptor cable (A06045 / A06075) connects to SeaTalkng® backbone.

Note

  1. SeaTalkng® devices must be connected to a correctly terminated backbone that the display is also connected to. Products cannot be connected directly to the display.

  2. Refer to the instructions supplied with your SeaTalkng® product for details on creating a backbone.
