Product overview

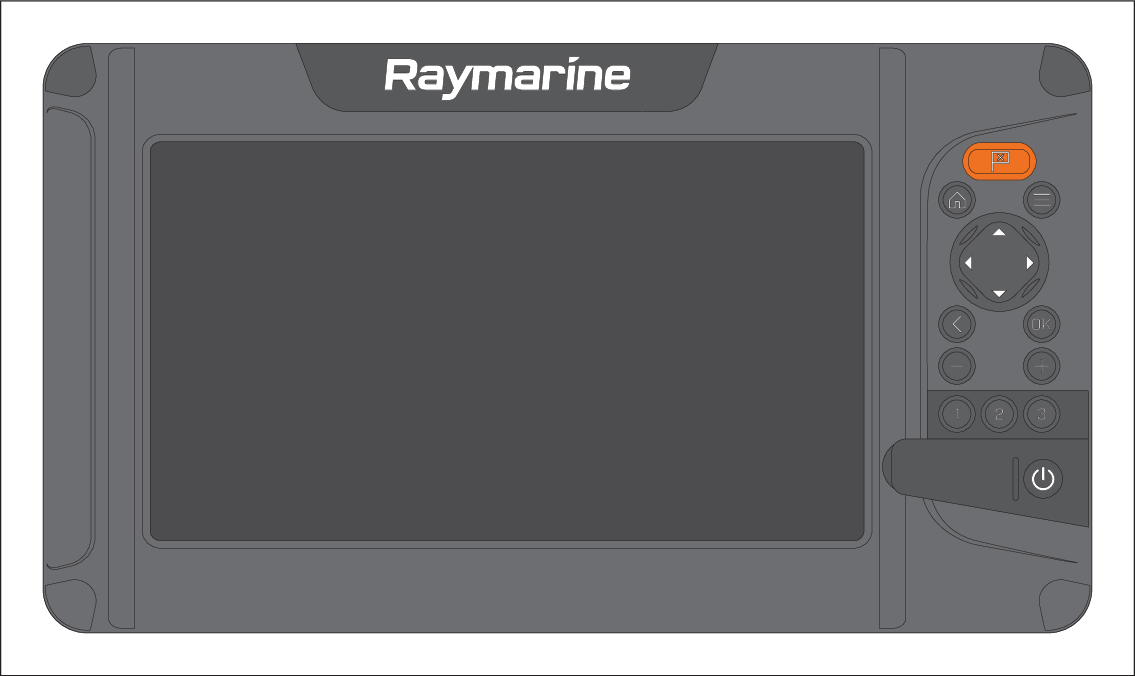

Element™ displays are combination fishfinder / chartplotting displays that can be connected to a NMEA 2000 or SeaTalkng® network and display vessel data and data from compatible sensors and devices. Element displays are available with either a built-in HyperVision™ sonar module (Element™ HV), or a built-in conical sonar module (Element™ S).

Product overview

Important

An Element display can NOT be connected to the same SeaTalkng® backbone as a Multifunction display. Examples of MFDs include Axiom, or a Series, c Series, e Series, eS Series, or gS Series displays. Further, because the Element display does NOT have a RayNet connection, it is not possible to network it in any way with a Multifunction display (MFD).

Element™ displays include the following features:

  • New simple-to-use LightHouse™ Sport operating system optimized for fishing.

  • Sunlight-viewable LCD.

  • Built in GPS / GNSS receiver.

  • Supports wireless Quantum™ radar scanner connection.

  • Send navigation data to connected autopilot.

  • Supports AIS connection.

  • Personal sonar mapping using Raymarine RealBathy™.

  • Compatible with LightHouse NC2 charts with Fishing Hot Spots®, Navionics and C-MAP cartography.

  • 3 user programmable Quicklaunch buttons.

  • Share waypoints between networked Element™ displays.

  • Supports display of data from up to 2 standard NMEA 2000–compliant trim tabs.

  • Supports display of data from compatible networked (NMEA 2000 / SeaTalkng®) devices and sensors.

  • Supports display of data from compatible engines when connected via an ECI-100.

  • Transmit position data to a VHF radio connected to the same NMEA 2000 / SeaTalkng® backbone.

Element™ displays are available with and without built-in Wi-Fi. Displays that include Wi-Fi can connect to the internet and perform over the air software updates.

Element™ HV

Element™ HV display’s HyperVision™ 1.2 MHz CHIRP sonar technology increases sonar image resolution, providing a higher level of precision for bottom structure, vegetation and fish identification.

When connected to a HyperVision™ transducer, the following fishfinder channels are available:

  • RealVision™ 3D (Hyper 1.2 MHz)

  • RealVision™ 3D (Standard 350 kHz)

  • SideVision™ (Hyper 1.2 MHz)

  • SideVision™ (Standard 350 kHz)

  • DownVision™ (Hyper 1.2 MHz)

  • DownVision™ (Standard 350 kHz)

  • Sonar Conical high CHIRP (200 kHz)

Element™ S

When connected to a CPT-S transducer, only the traditional conical high CHIRP (200 kHz) fishfinder channel is available.
