Element autopilot connection

You can connect an Element™ display to the same network as an Evolution™ autopilot system.

Autopilot commandsAn Element™ display can send navigation commands / data to a compatible autopilot controller.

Note

Navigation commands require acknowledgement from the autopilot controller.

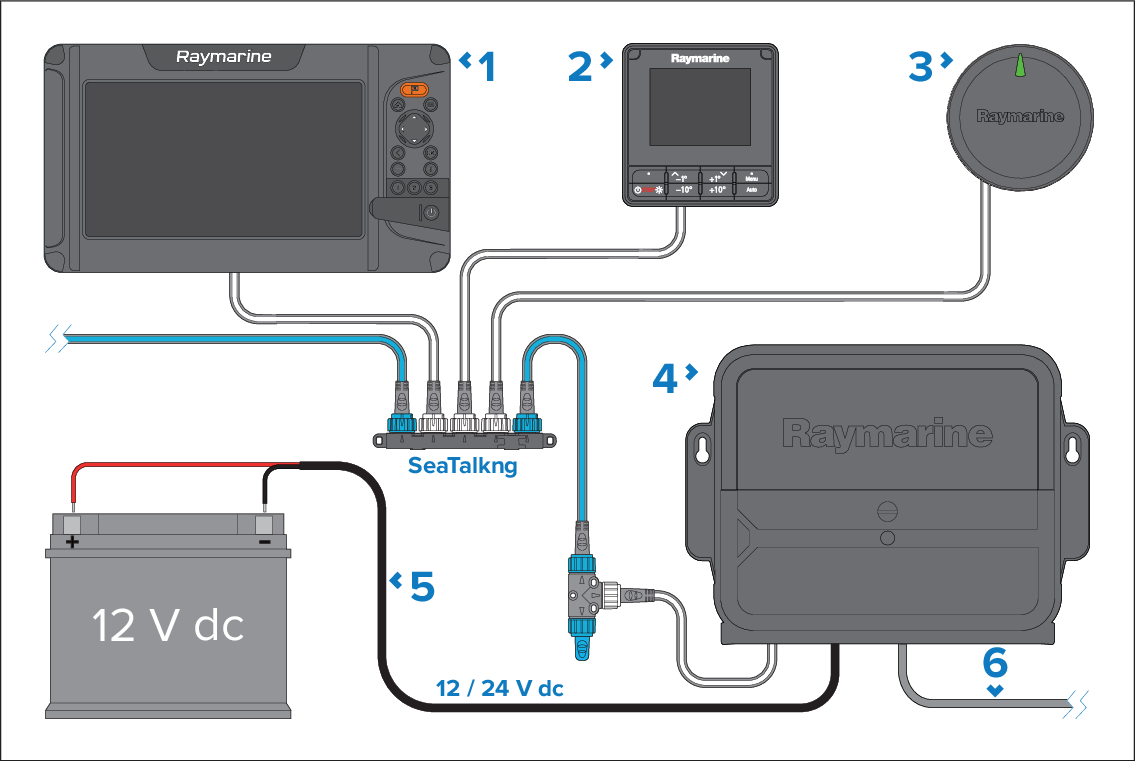

  1. Element™ display.

  2. Pilot controller (e.g.: p70s)

  3. EV sensor (e.g.: EV-1)

  4. ACU (e.g.: ACU-200)

  5. Power supply to ACU, also supplies 12 V dc to SeaTalkng™ network..

  6. Cable to drive unit.
