Parts supplied (pedestal and VCM100)

The parts illustrated below are supplied in the pedestal box for the following part numbers: T70408, T70410, T70412, T70414

Parts supplied

Parts suppliedBox contentsWhat’s in the box

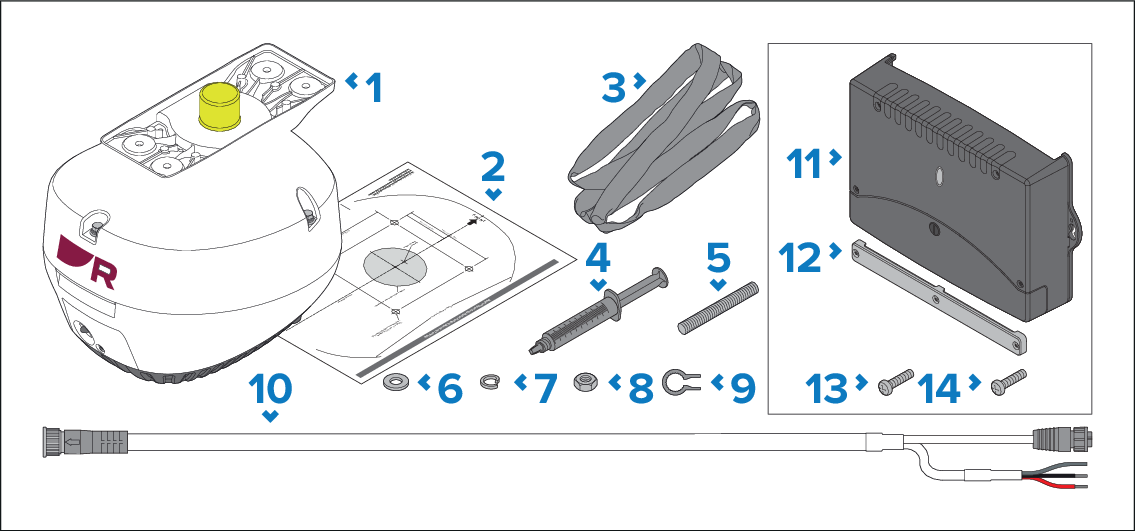

Description

1

1x Pedestal.

2

1x Mounting template.

3

1x Lifting sling.

4

1x Denso paste.

5

4x Studs.

6

4x Plain washers.

7

4x Spring washers.

8

8x Nuts.

9

1x Cable tightening tool.

10

1x Radar-to-’RayNet & power’ cable, 15 m (49.21 ft).

11

1x VCM100 Voltage Converter Module.

12

1x VCM100 cable clamp.

13

2x VCM100 mounting screws.

14

3x VCM100 cable clamp mounting screws.
Note

  • You must provide suitable power wires (not supplied) to connect the VCM100 to the power supply, including a suitable screen wire to connect the VCM100 to the vessel’s RF ground connection. For information on suitable wire gauges, refer to: VCM100 power wire gauge and VCM100 screen (drain) wire gauge

  • If you do not have a thermal circuit breaker or fuse in your power circuit (fitted to the DC distribution panel, for example), you MUST fit an inline breaker or fuse to the positive wire of the power cable. (not supplied). For suitable fuse ratings, refer to: Circuit breaker and fuse ratings

Note

A separate Radar to “RJ45 & power” accessory cable is available for connections to equipment that require an RJ45 connector. For more information on the spares and accessories available, refer to: Spares and accessories
