Traditional transducer connection

Traditional transducers can be connected to an Axiom DV display’s Transducer (Sonar Only) connection using the DV 9-pin to CP370 8-pin adaptor cable (part number: A80485).

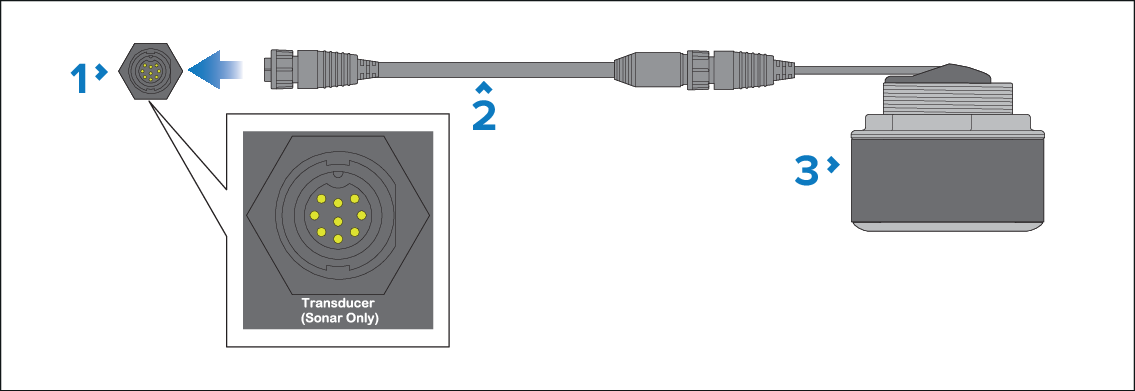

Connections Transducer Traditional transducers

1. Display’s Transducer (Sonar Only) 9-pin connector.

2. DV 9-pin to CP370 8-pin adaptor cable (part number: A80485).

3. Traditional transducer.

For a list of compatible transducers refer to:

• Compatible transducers
