DownVision and CPT-S-Series transducer connections

DownVision and CPT-S-Series transducers can be connected directly to an Axiom DV display’s Transducer (Sonar Only) connection using the cable(s) supplied with the transducers.

Connections Transducer DownVision transducersCPT-S-Series transducers

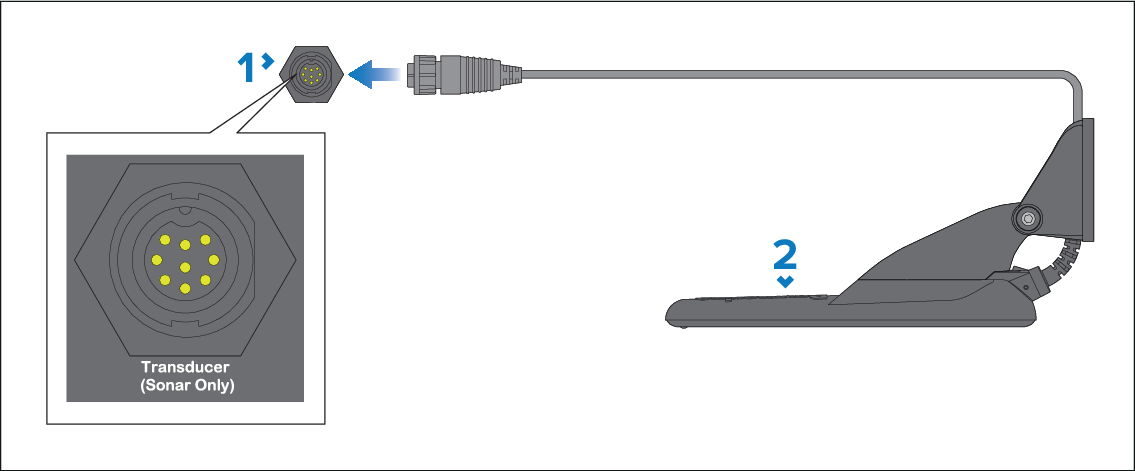

1. Display’s Transducer (Sonar Only) 9-pin connector.

2. Transducer (DownVision transducer illustrated).

For a list of compatible transducers refer to:

• Compatible transducers
