SeaTalk 1 pilot controller connection

The SeaTalk 1 to SeaTalk NG converter can be used to enable control of SeaTalk NG autopilots using legacy SeaTalk 1 pilot controllers. Other SeaTalk 1 devices can be connected to the SeaTalk NG backbone in the same way.

ConnectionsNetwork connectionsSeaTalk 1Pilot controller connection

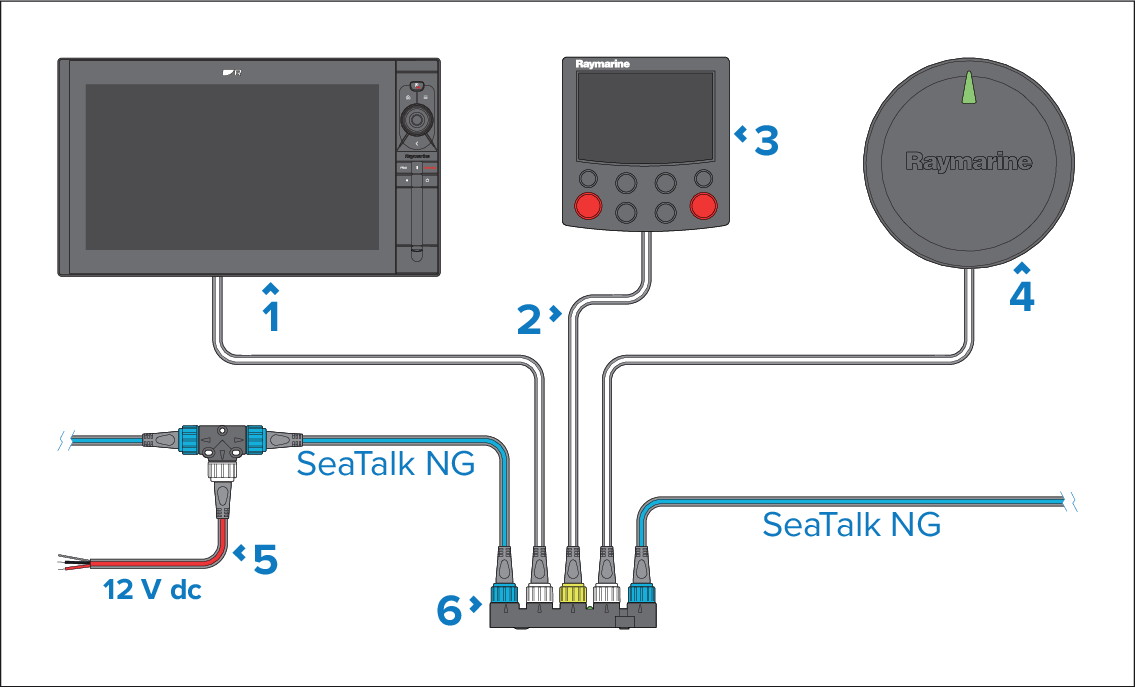

  1. SeaTalk NG MFD (MFDs require a separate power supply).

  2. SeaTalk 1 to SeaTalk NG adaptor cable (A22164).

  3. SeaTalk 1 pilot controller (powered from the SeaTalk NG backbone).

  4. SeaTalk NG autopilot.

  5. SeaTalk NG 12 V dc power supply connection.

  6. SeaTalk 1 to SeaTalk NG converter (E22158).
