Drive interface unit connection — Volvo® Penta EVC

The EV-2 connects to a Volvo® Penta EVC drive interface unit via DeviceNet connections.

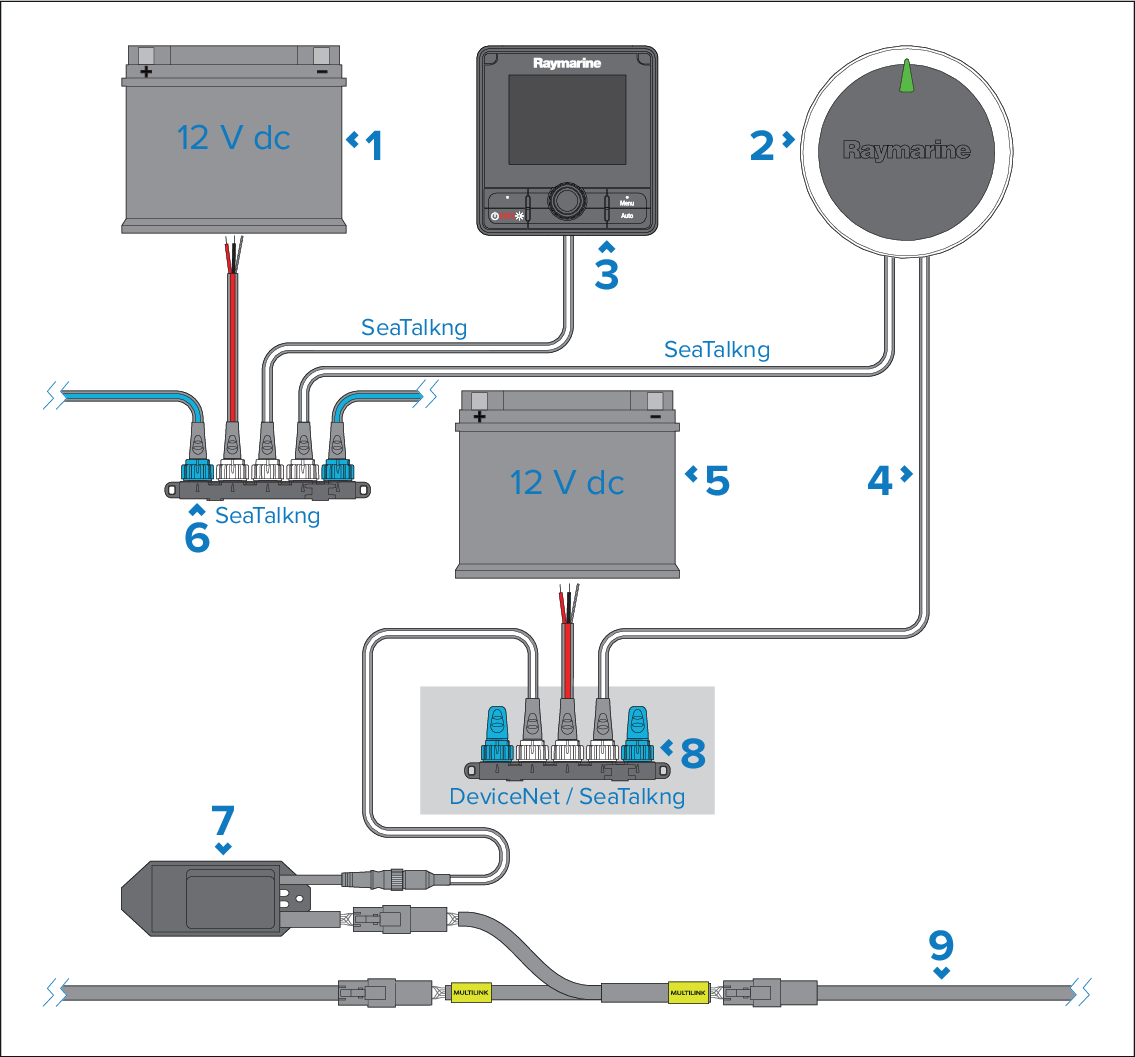

ConnectionNetwork connectionsVolvo EVC drive interface

  1. 12 V dc power supply (providing power to SeaTalk NG).

  2. EV-2.

  3. Autopilot controller.

  4. DeviceNet adaptor cables (female) (as supplied with Raymarine DeviceNet cable kit).

  5. 12 V dc power supply (providing power to the Volvo® Penta EVC interface unit).

  6. SeaTalk NG 5-way block.

  7. Volvo® Penta EVC drive interface unit (available separately).

  8. Dedicated SeaTalk NG backbone (providing power to the Volvo® Penta EVC drive interface).

  9. Engine CAN bus.
