Drive interface unit connection — SeaStar Solutions / Teleflex Optimus

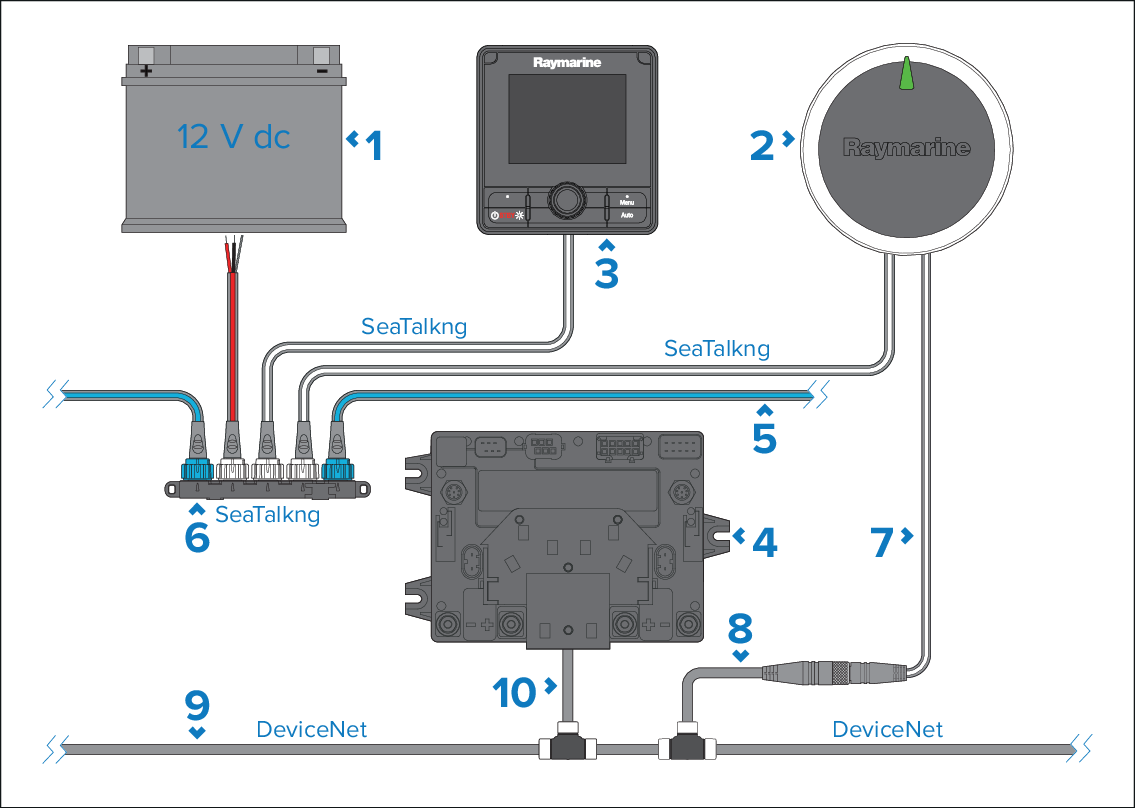

The EV-2 connects to a SeaStar Solutions / Teleflex Optimus drive interface unit via DeviceNet connections.

ConnectionNetwork connectionsSeaStar drive interface

  1. 12 V dc power supply (providing power to SeaTalk NG).

  2. EV-2.

  3. Autopilot controller.

  4. SeaStar Solutions / Teleflex Optimus drive interface unit (as supplied by SeaStar Solutions / Teleflex or dealer).

  5. SeaTalk NG backbone.

  6. SeaTalk NG 5-way block.

  7. DeviceNet cable (female) (as supplied by SeaStar Solutions / Teleflex or dealer).

  8. DeviceNet spur cable (as supplied by SeaStar Solutions / Teleflex or dealer).

  9. DeviceNet backbone / bus.

  10. DeviceNet spur cable (as supplied by SeaStar Solutions / Teleflex or dealer).
