Basic system example
The following example provides an overview of a basic system, including the available connections and the types of analog transducers that can be connected to your iTC-5.

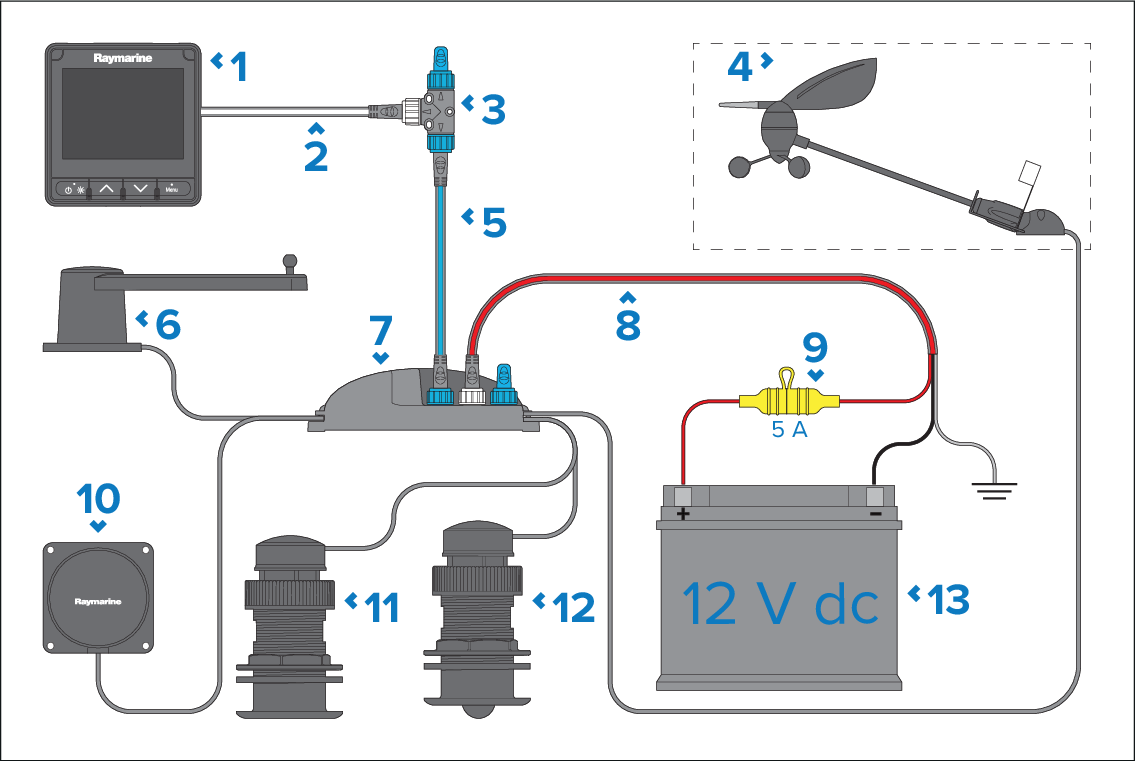

System diagramConnections
This system is shown as an example only, and may differ from your planned installation.
Description |
|
|---|---|
1 |
i70s Instrument display. |
2 |
SeaTalk NG spur cable. |
3 |
SeaTalk NG T-piece connector with Terminator fitted. |
4 |
Wind transducer (Analog). |
5 |
SeaTalk NG backbone cable. |
6 |
Rudder reference transducer (Analog). |
7 |
iTC-5 with terminator fitted. |
8 |
SeaTalk NG power cable. |
9 |
5 A fuse in waterproof fuse holder. |
10 |
Fluxgate compass transducer (Analog). |
11 |
Depth transducer (Analog). |
12 |
Speed / Temperature transducer (Analog). |
13 |
12 V dc power supply. |
For information on how to connect your products, refer to the following sections:
For information on the available cables and accessories, refer to the following section: Spares and accessories
