Connections overview
The iTC-5 converter connects
inline as part of the SeaTalk NG backbone. It provides connections to enable transducers to be installed
onto the SeaTalk NG network.

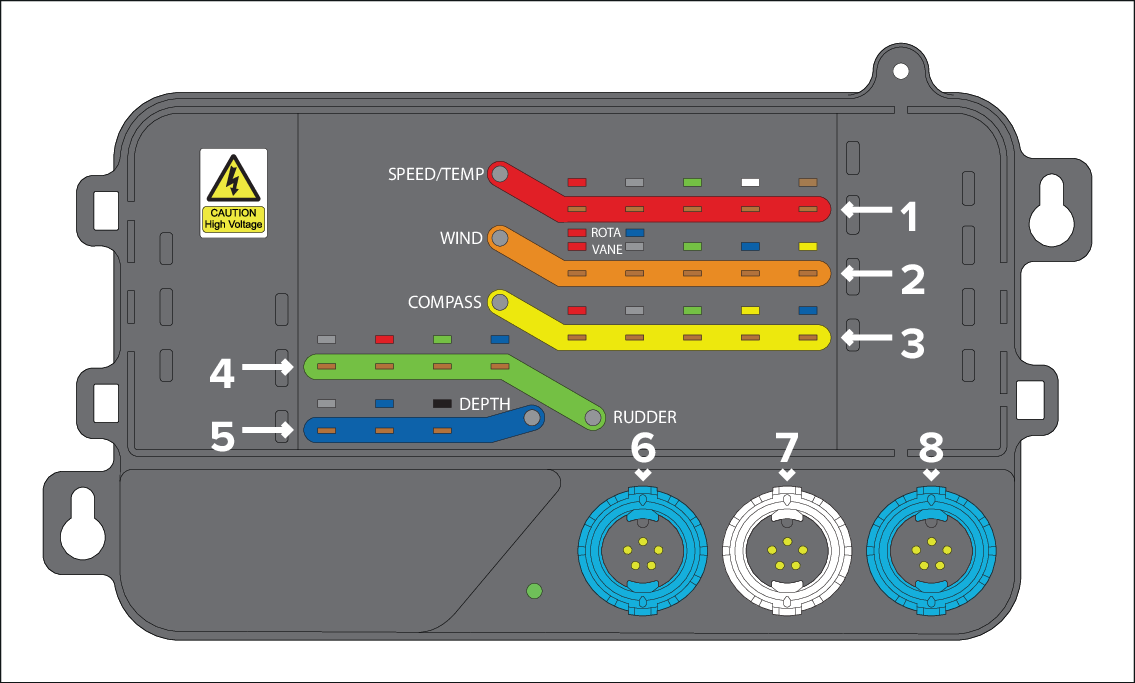

| Connections | Color |
Description |
|---|---|---|
1 |
Red |
Speed and sea temperature transducer connection. |
2 |
Orange |
Wind transducer and rotavecta connection. |
3 |
Yellow |
Fluxgate compass connection. |
4 |
Green |
Rudder reference transducer connection. |
5 |
Blue |
Depth transducer connection. |
6 |
— |
SeaTalk NG backbone connection. |
7 |
— |
SeaTalk NG spur connection. |
8 |
— |
SeaTalk NG backbone connection. |
