Lost connection MOB

The Lost connection MOB alarm is a safety alarm intended to alert the crew that the person using the remote has fallen overboard. When connection to the remote is lost the system assumes that the crew member using the remote has fallen overboard.

Man overboardLost connection MOBAlarmsLost connection MOBWhen Lost connection MOB is enabled, if the connection between the remote and the system is lost the alarm is activated.

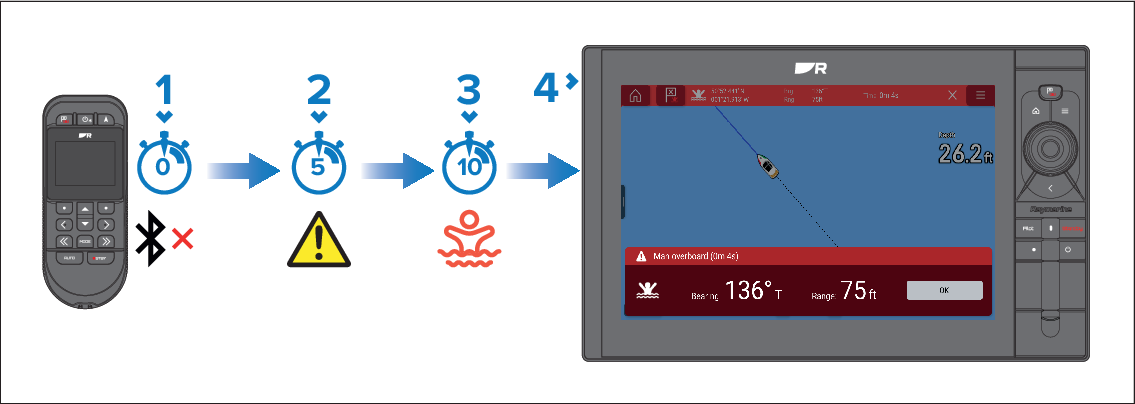

Figure 1. Lost connection MOB sequence

  1. Bluetooth connection to the remote is lost.

  2. 5 seconds after connection is lost a warning is displayed.

  3. 10 seconds after connection is lost the Lost connection MOB alarm is triggered.

  4. At 10 seconds the MOB alarm is triggered on connected chartplotters.

If the remote re-connects at any point up to the Man Overboard alarm being triggered the process is cancelled.

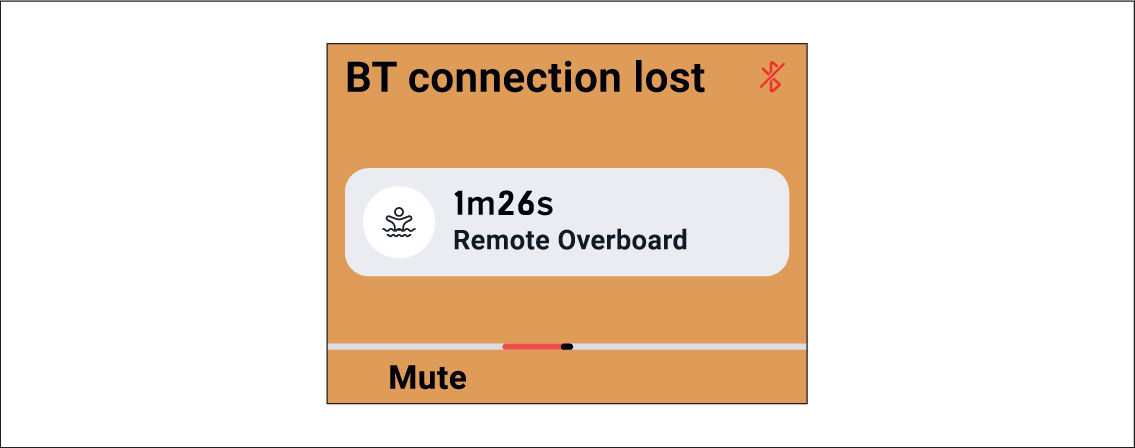

While the Lost connection MOB alarm is active the Lost connection MOB page is displayed on the remote.
