Mercury sidebar overview

The Mercury sidebar is available in all MFD apps, and provides quick access to Mercury features and engine data.

Mercury SidebarSidebarMercury

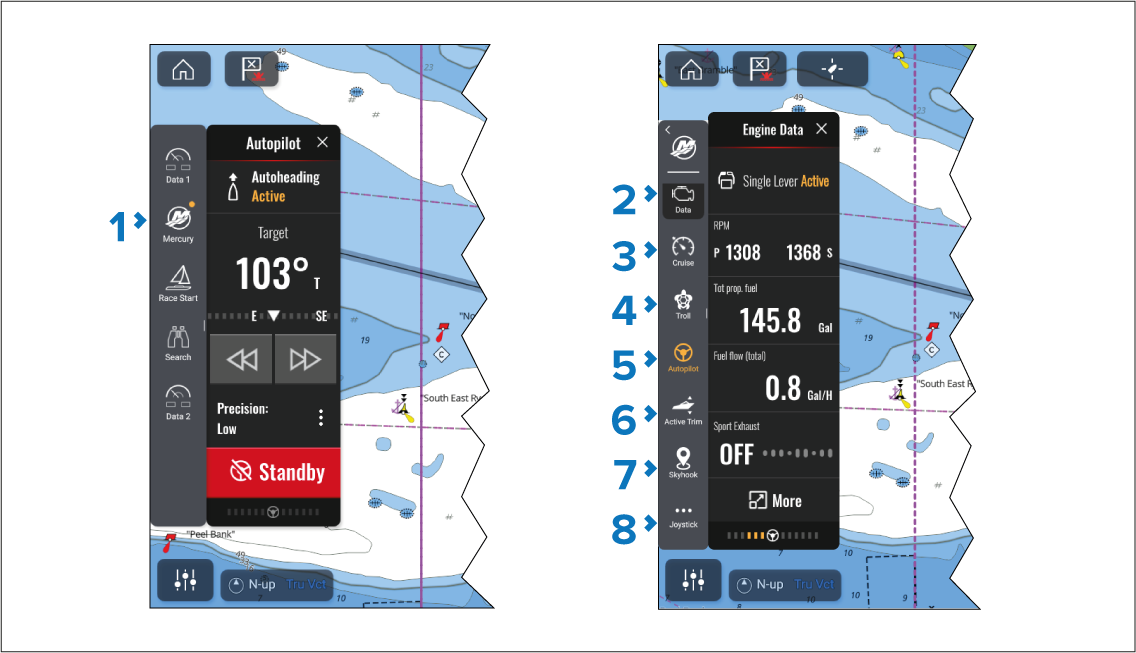

Selecting the Mercury icon displays the available Mercury sidebars. Selecting a Mercury sidebar icon will display the relevant sidebar.

1. Mercury icon

2. Data sidebar

3. Cruise sidebar

4. Troll sidebar

5. Autopilot sidebar

6. Active Trim sidebar

7. Skyhook sidebar

8. Joystick sidebar

An amber circle in the top right of the Mercury icon (as shown in item 1 in the screenshot) indicates an active control feature. The relevant sidebar icon will also be colored amber, as shown in item 5 in the screenshot.
