Preparing the mounting surface (through-surface cable routing)

The mounting surface must be prepared correctly for through-surface cable routing.

Prerequisites:

  • Ensure that you have selected a suitable mounting location based on the requirements listed in the following section: Location requirements

  • Ensure that you have identified all cable connections required and routed the necessary cables to your selected mounting location.

  • Ensure that the provided fixings are suitable for the mounting surface material and thickness.

MountingSurface preparation
Note

Ensure that the mounting template is orientated correctly; the “Front” arrow on the template should point in the desired viewing direction.

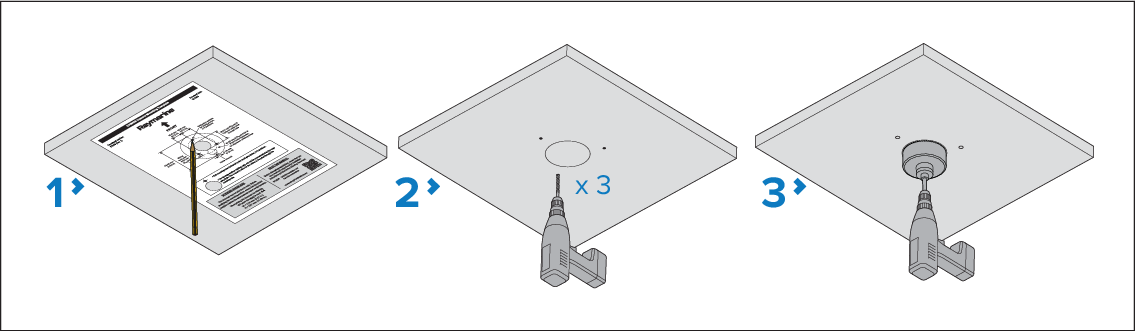

  1. Use the supplied mounting template to mark out the location of the 3 fixing holes and the 25 mm (63/64 in) cable feed-through hole.
  2. Drill the 3 x holes required for the fixings at the marked locations.
  3. Drill the 25 mm (63/64 in) cable feed-through hole
