Location requirements for Augmented Reality
Recommendations to ensure reliable and trouble free operation when using the camera for ClearCruise® Augmented Reality:
Direction — the camera should be pointing towards the vessel’s bow and must be in parallel alignment with the longitudinal axis (centerline) of the vessel.
Tilt angle — the camera should be tilted so the water and horizon are clearly visible at all times.

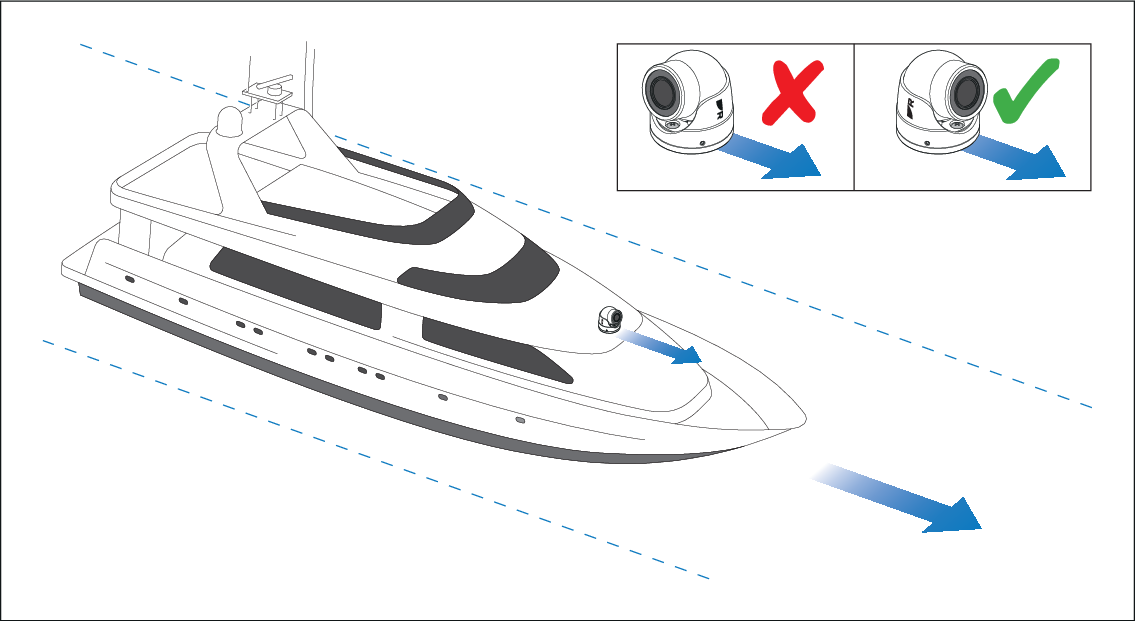

Example: camera position and directional view
For more information on the additional system components and connections required to enable ClearCruise® Augmented Reality on your system, refer to: Example Augmented Reality system overview
The camera must be calibrated via your LightHouse chartplotter’s Camera installation page before Augmented Reality features can be used. For more information, refer to one of the following documents:
Axiom 2 LightHouse 5 Operation Instructions (81432), or
LightHouse 4 Advanced Operation Instructions (81406).
The latest version of these documents can be found under the following section: Product documentation
