PoE network connection

ConnectionsNetworkPoE connection

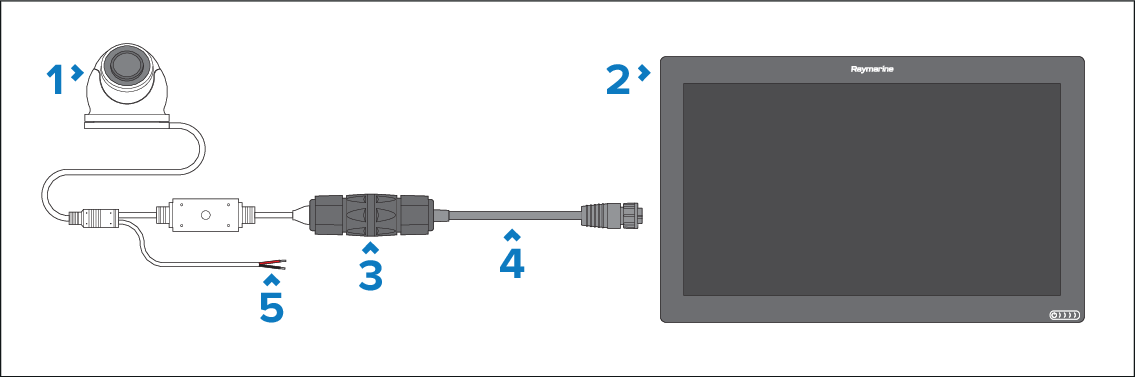

  1. CAM300.

  2. PSE (Power Sourcing Equipment) providing PoE (Power over Ethernet) to the camera (Axiom XL currently illustrated).

  3. RJ45 to RJ45 waterproof coupler (4115028 — not supplied).

  4. RayNet (female) to RJ45 (male) adapter cable (A62360 — not supplied).

  5. Camera power cable — DO NOT CONNECT if the camera is being supplied PoE (Power over Ethernet).

For details on the available network hardware and cables, refer to the following section: Spares and accessories
