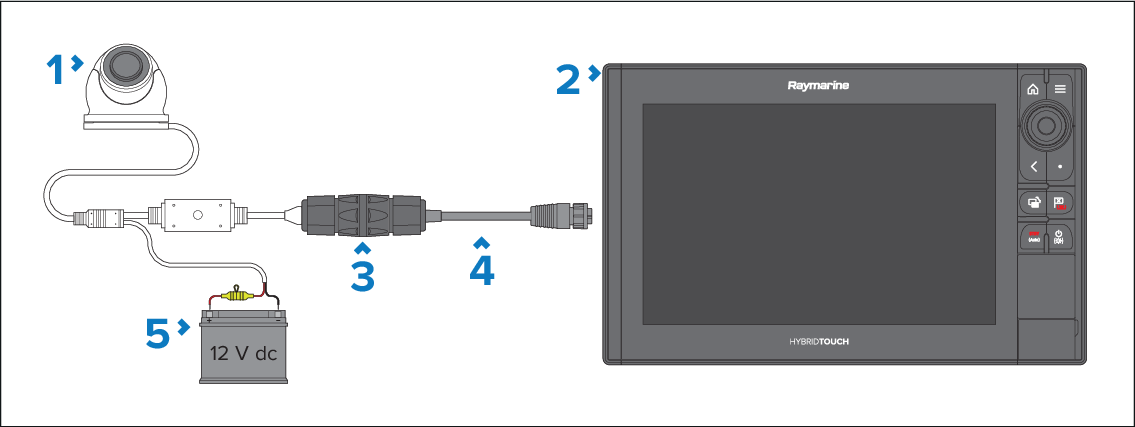

Non-PoE network connection

ConnectionsNetworkNon-PoE connection

1. CAM300.

2. Raymarine® multifunction display.

3. RJ45 to RJ45 waterproof coupler (4115028 — not supplied).

4. RayNet (female) to RJ45 (male) adapter cable (A62360 — not supplied).

5. 12 V dc power supply providing power to the camera.

For details on the available network hardware and cables, refer to the following section: Spares and accessories
