PoE injector power connection

The CAM300 can also be powered using a PoE injector.

ConnectionsPowerPoE Injector connection

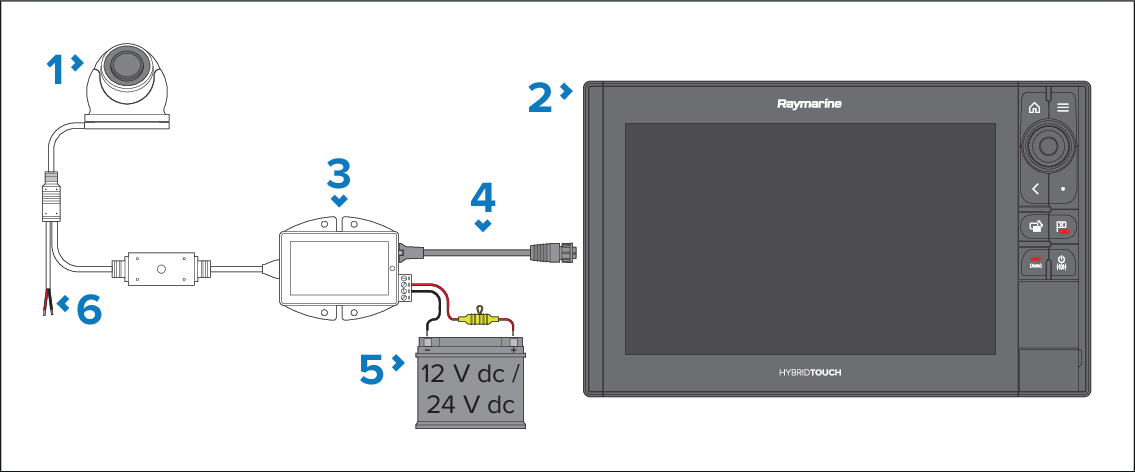

1. CAM300.

2. Raymarine® multifunction display.

3. PoE injector (4113746 — not supplied).

4. RayNet (female) to RJ45 (male) adapter cable (A62360 — not supplied).

5. 12 / 24 V dc power supply providing power to the PoE injector.

6. Camera power cable — DO NOT CONNECT if the camera is being supplied PoE (Power over Ethernet).

For further information on the cabling required, refer to the following section: RayNet to RJ45 adapter cables
