PSE (Power Sourcing Equipment) power connection

The CAM300 can be powered via a PSE’s (Power Sourcing Equipment) Ethernet connection.

ConnectionsPowerPoE connection

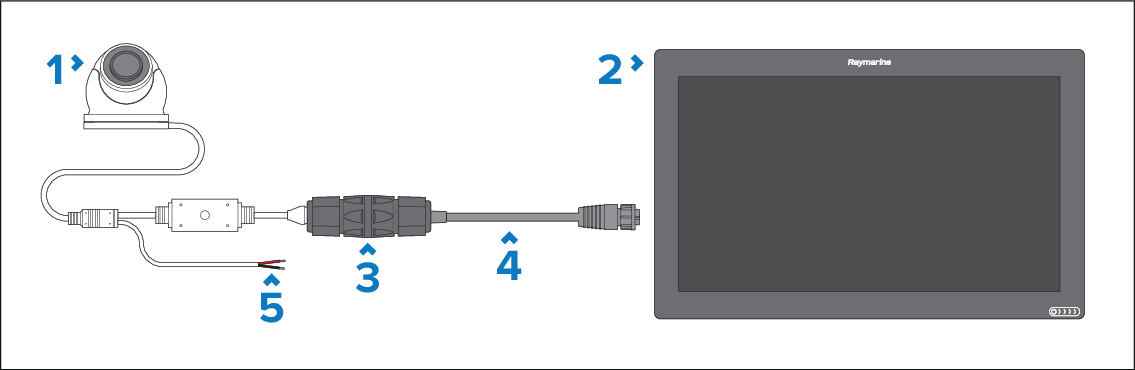

  1. CAM300.

  2. PSE (Power Sourcing Equipment) providing PoE (Power over Ethernet) to the camera (Axiom XL currently illustrated).

  3. RJ45 to RJ45 waterproof coupler (4115028 — not supplied).

  4. RayNet (female) to RJ45 (male) adapter cable (A62360 — not supplied).

  5. Camera power cable — DO NOT CONNECT if the camera is being supplied PoE (Power over Ethernet).

For further information on the cabling required, refer to the following section: RayNet to RJ45 adapter cables
