YachtSense ecosystem

YachtSense is Raymarine’s digital vessel monitoring and control solution. The YachtSense ecosystem enables on and off-boat monitoring and control of connected vessel systems and data.

Connections YachtSense System MFD

On-boat monitoring and control can be achieved using Raymarine Axiom-Series and Axiom 2-Series chartplotters, or the Raymarine app installed on a mobile phone or tablet.

Off-boat (remote) monitoring and control can be achieved using the Raymarine app running on a compatible mobile phone or tablet. Off-boat monitoring and control also requires:

  • A Premium subscription to the Raymarine app.

  • Your system to have an active Internet connection.

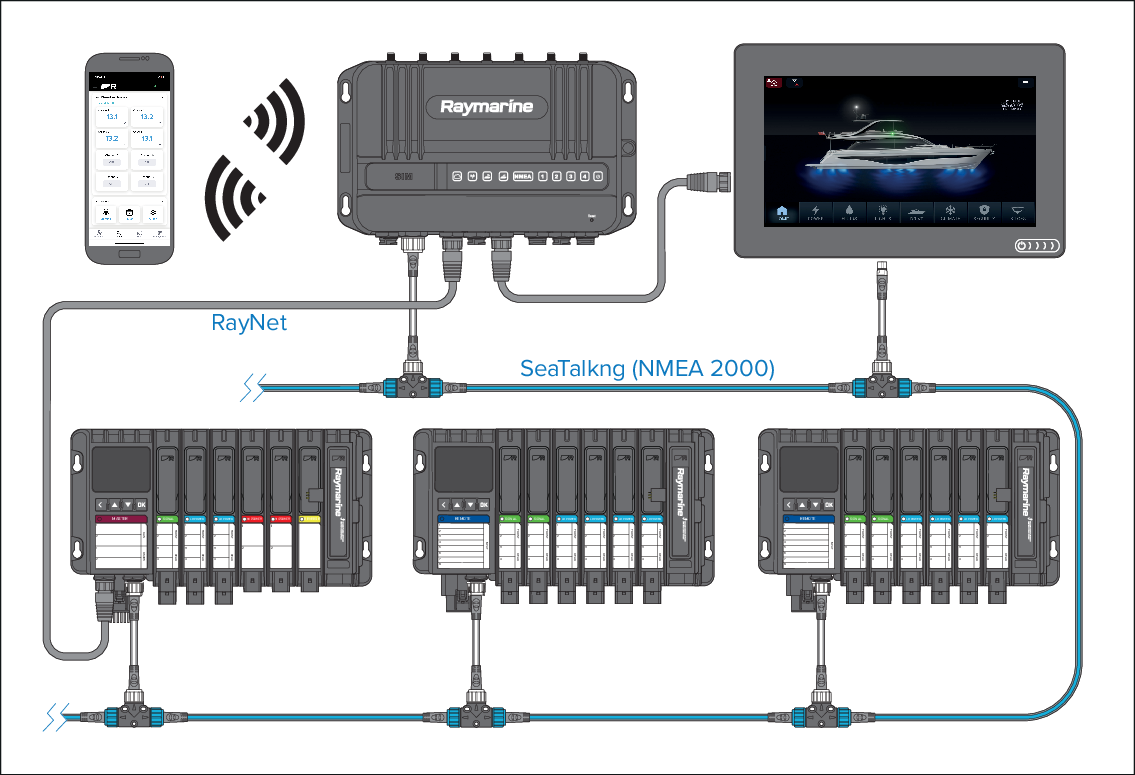

YachtSense ecosystemThe full YachtSense ecosystem consists of:

  • YachtSense Link router.

  • YachtSense DCS, running v2.2.415, or later.

  • Raymarine app.

  • Premium app subscription (required for off-boat connectivity).

  • Axiom-Series / Axiom 2-Series chartplotter.

Note

  • The YachtSense Link router must be connected to the same SeaTalk NG backbone as the YachtSense DCS, and any chartplotters.

  • The router must also have a RayNet connection to the YachtSense DCS’s Master module, and any chartplotters.
