Wave direction, wave height and wave period layers
The wave direction layer uses arrows to identify the direction waves are travelling. The wave height layer uses color coding to identify the height of waves, the wave period layer also uses color coding to identify the gap between waves. A legend is available that can be displayed onscreen to aid identification of wave height and wave period.
The legend can be enabled from the main menu: .

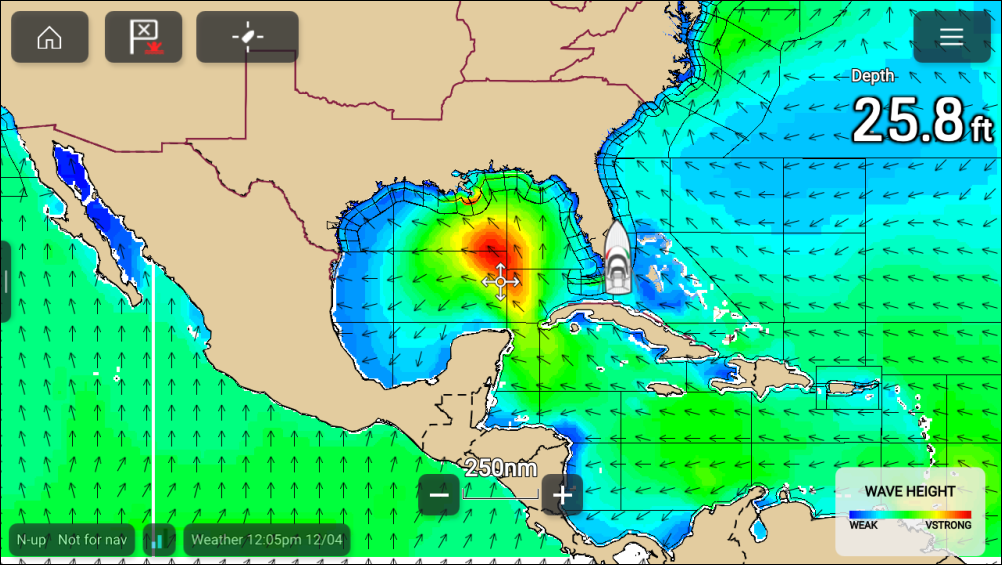

Wave direction and wave height
Weather mode Wave directionWave Height
The wave direction layer can be enabled and disabled from the Weather layers menu: .
The wave height layer can be enabled and disabled from the Weather layers menu: .

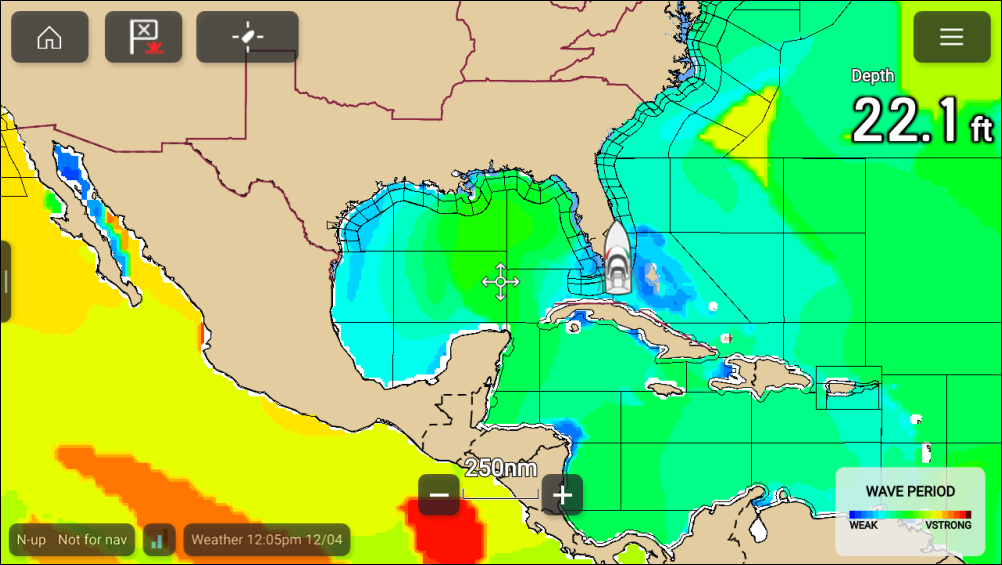

Wave period
Weather mode Wave period
The wave period layer can be enabled and disabled from the Weather layers menu: .
