Diagnostics sonar recording

Sonar recording enables you to record the fishfinder scrolling image as a video file, for troubleshooting purposes only. This means that any issues encountered in the Fishfinder app can be recorded and provided to Raymarine technical support for analysis. The recorded file is saved to a memory card, but cannot be viewed in standard video player software.

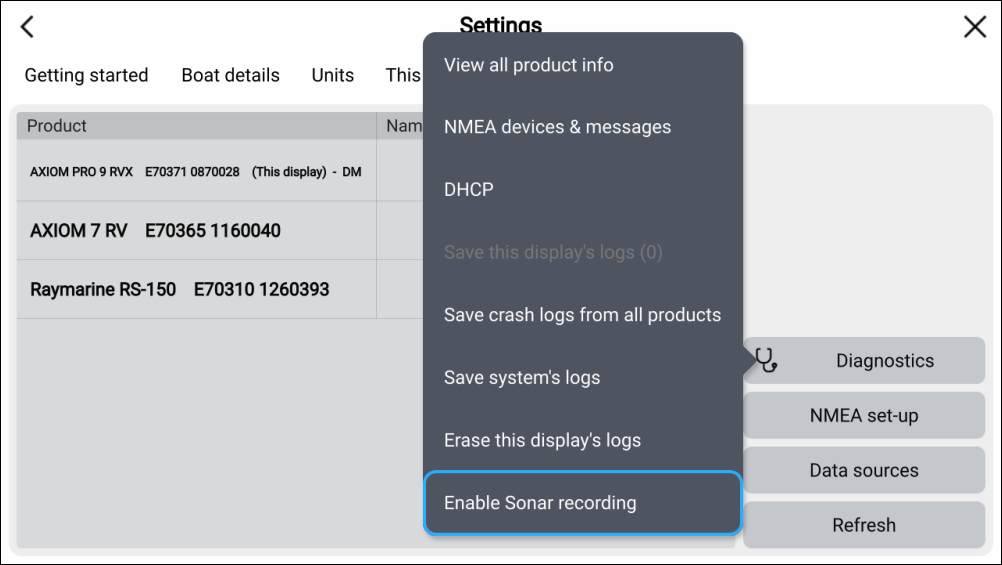

Diagnostics Sonar recordingFishfinder app Sonar recordingSonar recordingSonar recording is enabled from the Diagnostics options in the Network settings tab: Homescreen > Network > Diagnostics > Enable sonar recording.

When sonar recording is enabled, the Start recording, Copy recording, and Stop recording options will be available in the fishfinder app’s main menu. For more information. refer to: Recording sonar for troubleshooting

Sonar recording creates a .rec video file, which can be copied to a memory card and sent to technical support.
