Saving YachtSense Link logs

Logs held on the YachtSense™ Link router can be saved to memory card on a display running LightHouse™ V4.1 or greater.

Note

Savings crash logs using the Save crash logs from all products option available from the Diagnostic button will include YachtSense™ Link router logs. The below steps will only save the router’s logs.

Crash logs

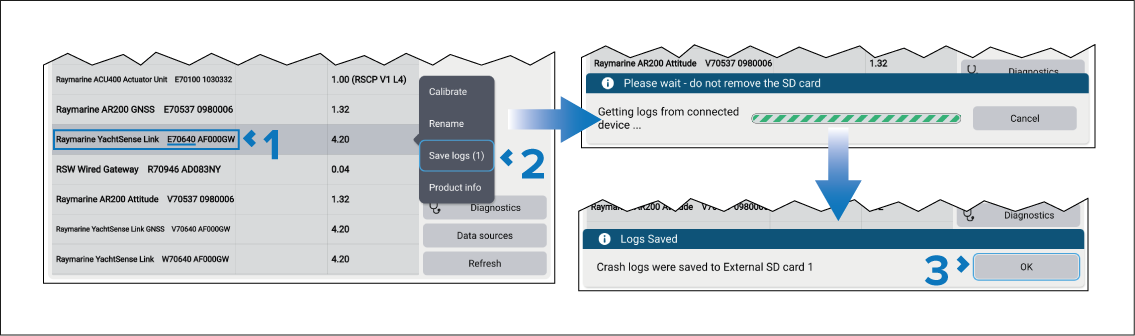

Select the YachtSense™ Link router button from the list of Networked devices: Homescreen > Settings > Network > Raymarine YachtSense Link E70640 xxxxxxx.
The network list will include 3 entries for the router, the correct option is the device that includes the router’s part number i.e.: E70640.
Select Save logs from the pop-over options.
Select OK on the ‘logs saved’ dialog.

The logs will be saved to a ‘logs’ folder that will be created on your memory card. The logs will be compressed as a ‘.zip’ file ready to be sent to Raymarine.
