Sailing boat configuration settings
When the chartplotter has been configured using the Sailing boating activity during the initial startup wizard the sailing settings are provided in the Boat details settings menu.

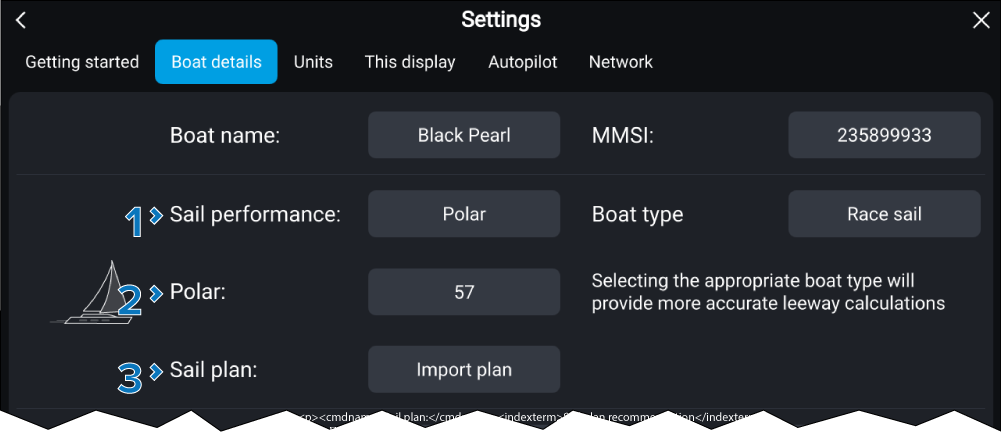

The following sailing settings are available:
Settings |
|
|---|---|
1 |
Sail performance:Sail performance The following options are available:
For more information refer to: Laylines |
Upwind angle:Fixed anglesUpwind angle This setting is available when the Fixed Angles Sail performance setting has been selected, and allows you to specify the fixed angle for upwind layline calculations. |
|
Downwind angle:Fixed anglesDownwind angle This setting is available when the Fixed Angles Sail performance setting has been selected, and allows you to specify the fixed angle for downwind layline calculations. |
|
2 |
Polar:Sail performance Polar This setting is available when the Polar Sail performance setting has been selected, and allows you to select a polar table, or import your own polar table. For more information on Polars, refer to: Polar laylines |
3 |
Sail plan:Sail plan recommendation This setting allows you to import and manage sail plans. For more information refer to: Sail plan recommendations |
