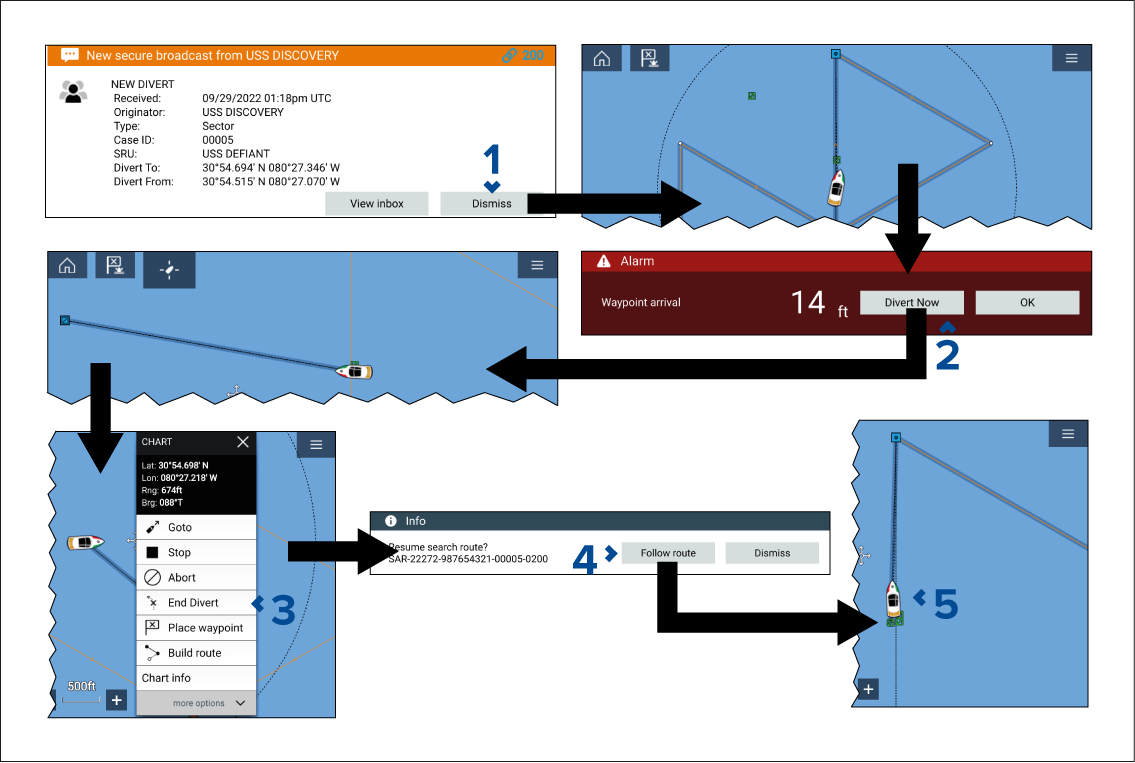

Below is an example of SRU actions for an instructed divert
that includes both “Divert To” and “Divert From” markers.
- Select Dismiss from the divert notification.
- When the “Divert From here” marker is reached, select Divert now from the waypoint arrival notification.
Active navigation will commence to the “Divert To here”
marker.
- Once the divert is complete, select OK on the waypoint arrival notification and then select End
divert from the chart context menu.
- Select Follow route from the notification.
Active navigation will commence back to the “Divert
From here” marker.
- Select OK on the waypoint arrival alarm.
Active navigation of the search pattern will recommence.
