Disengaging the autopilot

The autopilot can be disengaged using the Disengage pilot icon or a physical standby button.

AutopilotDisengageAutopilotStandby

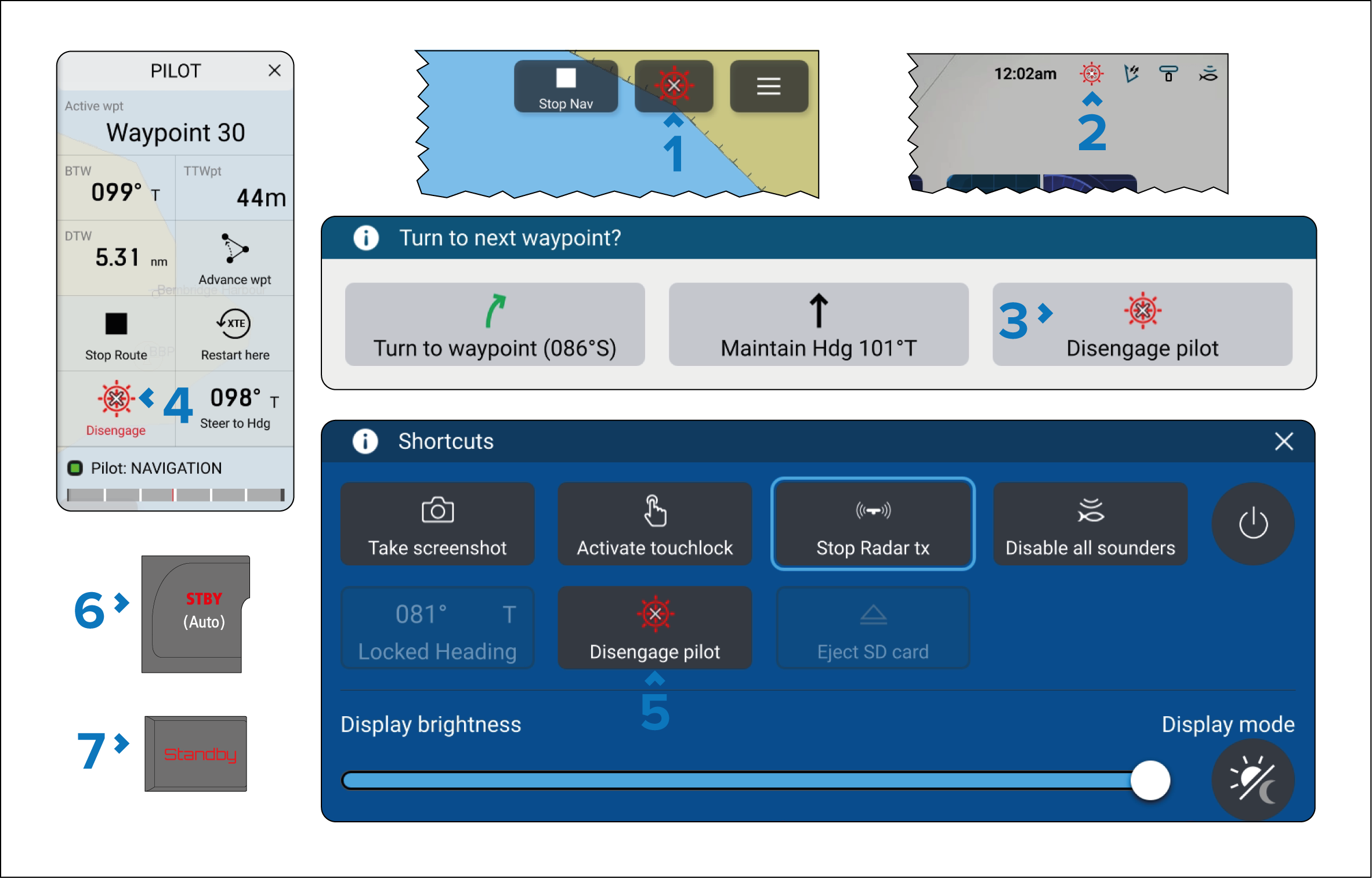

Figure 1. Disengage pilot control locations

  1. Top right corner of app pages.

  2. Status area of Homescreen.

  3. Waypoint arrival notification.

  4. Pilot sidebar.

  5. Shortcuts page.

  6. Axiom Pro/RMK-Series keypad physical STBY (Auto) button.

  7. Axiom 2 Pro Standby button.
