Changing the Quantum-Series Radar channel

In rare circumstances, Radar noise which cannot be eliminated using the Radar app’s Sensitivity settings may be reduced by changing the Radar’s internal wired adapter channel.

Note

  • This feature requiresQuantum 2 software version v2.50 (or later) / Quantum software version v2.44 (or later), and LightHouse 4 software version v4.3.54 (or later).

  • In the first instance you should try adjusting Sensitivity settings to eliminate the noise before changing the Wired adaptor channel.

Follow the steps below to change the channel from your display:

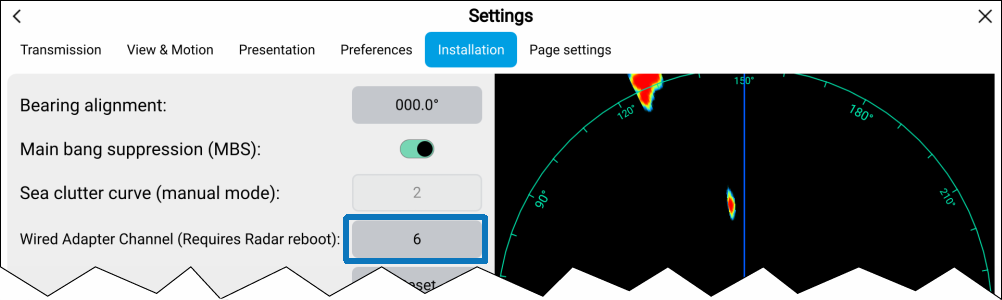

  1. Select the Installation tab from the Radar app menu: (Menu > Settings > Installation).
  2. Select the Wired Adapter Channel field.
  3. Change the channel to a different number.
  4. Re-start the Radar scanner for the changes to take effect.
