Axiom Pro controls

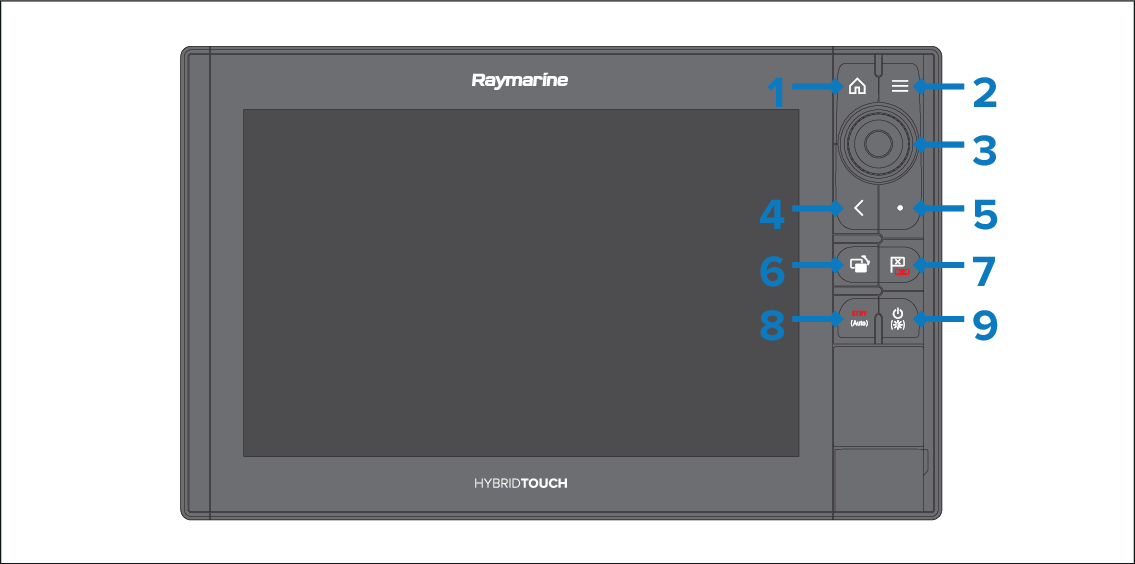

Axiom® Pro includes both a touchscreen and physical buttons that can be used to control the display. The details below describe the buttons and their functions.
Home — Press to show the Homescreen.
Menu — Press to open or close menus.
Uni-controller — The Uni-controller consists of a center OK button, Directional controls and a Rotary knob.
Back — Press to return to the previous menu or dialog.
User configurable keys — Press and hold the button to assign a function. Press the button to perform the assigned function.
Switch active — Press momentarily to switch the active pane in a splitscreen page. A long press expands the selected pane.
Waypoint / MOB — Press momentarily to place a waypoint at your vessel’s location. A long press activates the Man overboard (MOB) alarm.
Pilot — Press momentarily to show or hide the Pilot sidebar. A long press engages the autopilot in locked heading mode, or disengages an active autopilot.
Power — Press to switch on the display. When the display is switched on, pressing this button opens the Shortcuts page.
