Audio app overview

The Audio app can be used to control compatible entertainment systems that are connected to the same network as your MFD.

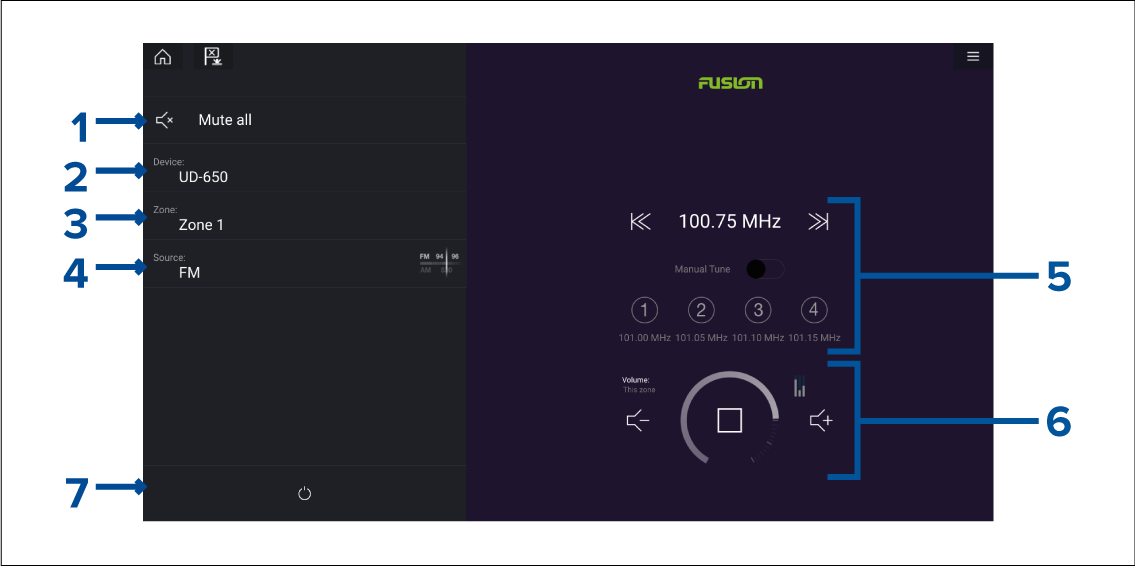

Audio appThe Audio app can be displayed in Fullscreen and half screen portrait app pages.

1. Mute All — Mutes all zones on all connected entertainment systems.

2. Device — On systems where more than 1 entertainment system are installed you can select which device the audio app controls.

3. Zone — On devices that support multiple zones you can select which zone the audio app controls.

4. Source — Change the media source for the selected entertainment system.

5. Audio source details and controls for currently selected source.

6. Volume and player controls for currently selected zone or multi-zone.

7. Power — Power on or off connected entertainment systems.
