Automatically steering to a heading

  1. Steady the vessel on the required heading.
  2. engaging the autopilotFor Wheel and Tiller drive systems see below instructions for engaging the autopilot.

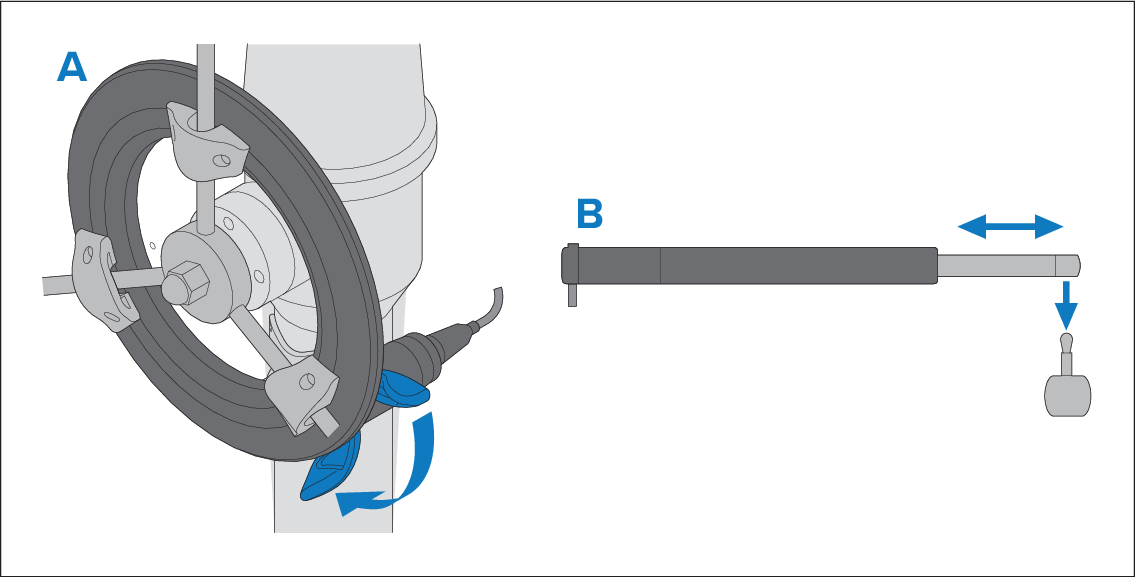

    • Wheel PilotA — Wheel Pilot: Engage the wheel drive clutch by rotating the clutch lever clockwise (so the lever fully engages onto the locating pip (small protruding circle)).

      Important

      Always reach around (not through) the wheel to operate the wheel pilot’s clutch lever.

    • Tiller PilotB — Tiller Pilot: Place the pushrod end over the tiller pin. If necessary, extend or retract the pushrod using the -1°, +1°, -10°, +10° buttons, or the Rotary control.

  3. AutoPress AUTO.
    The autopilot is now in Auto mode and will steer to the chosen locked heading.
