Adjusting apparent wind speed

Adjusting the Apparent Wind Speed (AWS) reading compensates for any small errors which may exist in the apparent wind speed reading.

Prerequisites:

  • To apply an offset to your AWS readings an accurate reference for AWS must be used to compare the instrument’s AWS reading against.

  • Conditions should be calm (i.e. a slight sea) and a steady breeze. Try to ensure the vessel is not rolling or pitching too much.

CalibrationWindWind speed calibrationFrom the list of transducers found:
  1. Select the device that the transducer you are calibrating is connected to.

    A list of available transducer data is displayed.

  2. (1)Select Wind.

    This step is only applicable when calibrating a wind transducer connected via an iTC-5.

  3. Select App Wind Speed.

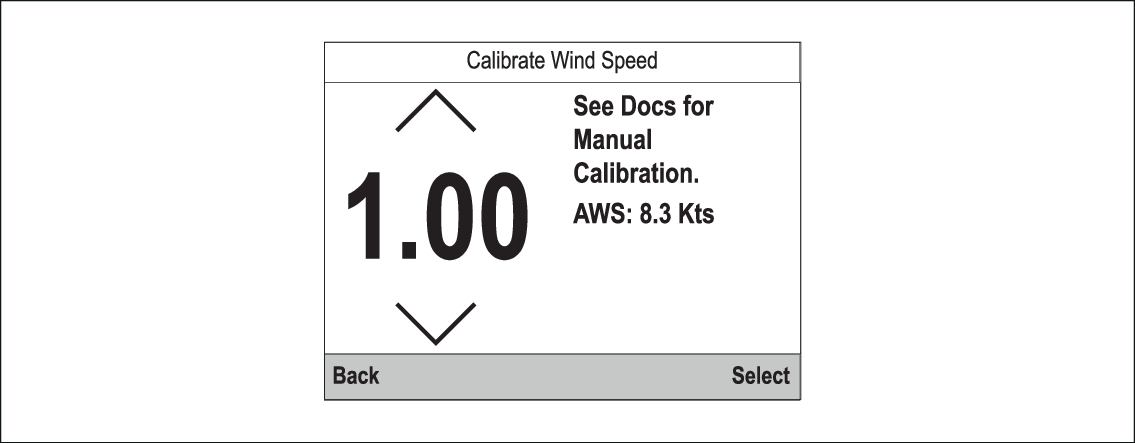

    The AWS calibration factor page is displayed.

  4. Use the Up and Down buttons to adjust the calibration factor until the AWS reading matches your referenced source of AWS.

    The Calibration Factor default is 1.00 the Calibration Factor can be adjusted from 0.25 to 2.00.

  5. Select Select to save the Calibration factor.
