Adjusting the wind transducer

Adjusting the wind transducer compensates for any small errors which may exist in the alignment of the wind transducer.

Prerequisites:

  • You will need to be underway, with sufficient space to proceed unhindered.

  • Conditions should be calm (i.e. a slight sea) and a steady breeze. Try to ensure the vessel is not rolling or pitching too much.

CalibrationWindWind calibrationAdjustmentFrom the list of transducers found:

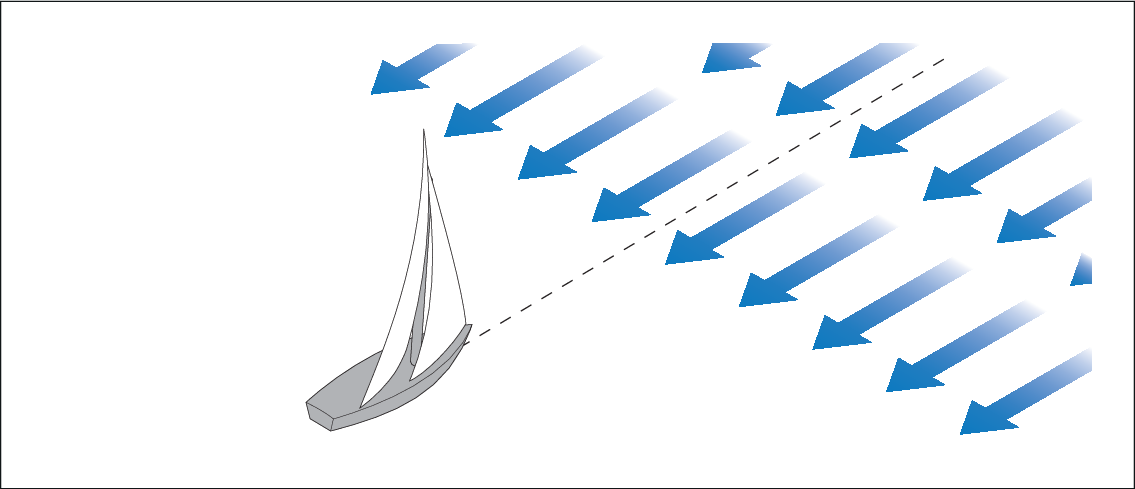

  1. Steer your vessel directly into the wind

    With your vessel sailing directly into the wind the Apparent Wind Angle (AWA) should be 0 degrees.

  2. Select the device that the transducer you are calibrating is connected to.

    A list of available transducer data is displayed.

  3. (1)Select Wind.

    This step is only applicable when calibrating a wind transducer connected via an iTC-5.

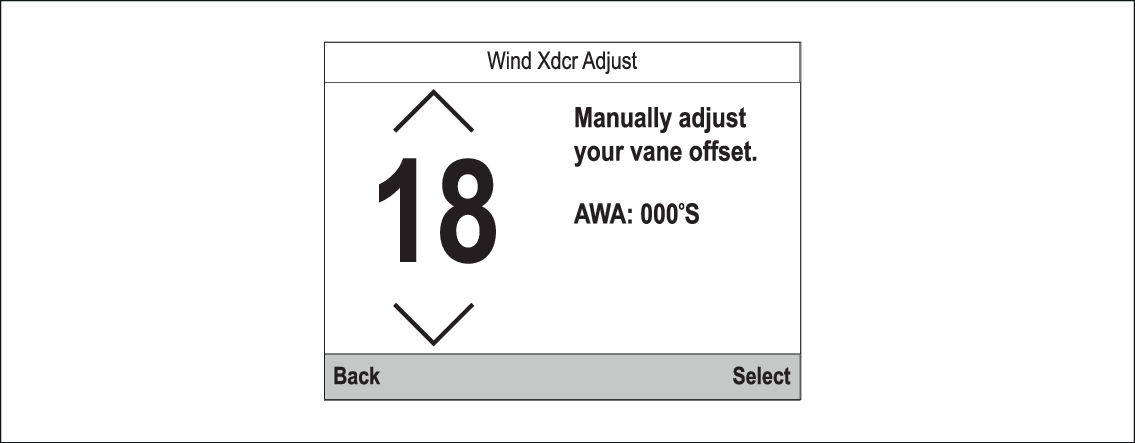

  4. Select Wind Xdcr Adjust.
  5. Use the Up and Down buttons to adjust the offset value so that the reported AWA is 0 degrees.
  6. Select Select.
