To calibrate rudder position follow the steps
below.
CalibrationRudderCentering the RudderCentering the Rudder requires
a method of knowing the Rudder’s actual position.From the Transducer Set-up menu: Menu > Set-up > Transducer
Set-up.
Select Continue.
The display will search for and display a list of connected
devices (i.e. iTC-5, DST or transducer pod).
Select iTC-5.
A list of available transducer data is displayed.
Select Rudder.

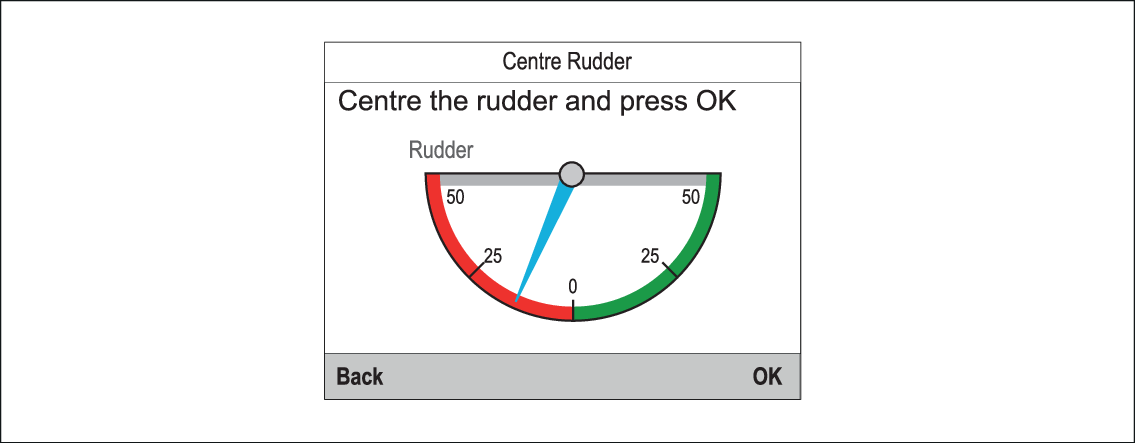

Select Centre Rudder.
Turn the steering until your Rudder is centred.
The Rudder reference transducer has indicators on its base and
on the rudder arm, ensure these marks are lined up.
When the Rudder is centered, select OK.
Select Back to return to the Rudder
calibration menu.
