Adjusting the Rudder Angle

Rudder Angle can be adjusted manually.
Adjusting the RudderManual adjustment of the Rudder Angle requires a method of knowing the Rudder’s actual position.
From the Transducer Set-up menu: Menu > Set-up > Transducer Set-up
  1. Ensure that the rudder is centered.
  2. Select iTC-5.
    A list of available transducer data is displayed.
  3. Select Rudder.

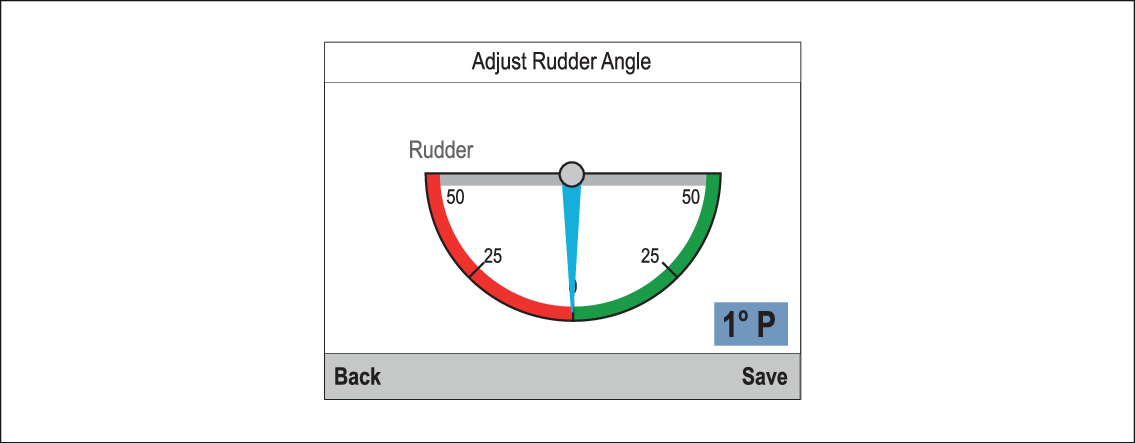

  4. Select Adjust Rudder Angle.
  5. Use the Up and Down buttons to adjust the pointer so that the pointer and the reported Rudder Angles are both zero.
  6. Select Save.
