YachtSense ecosystem

YachtSense is Raymarine’s digital vessel monitoring and control solution. The YachtSense ecosystem enables on and off-boat monitoring and control of connected vessel systems and data.

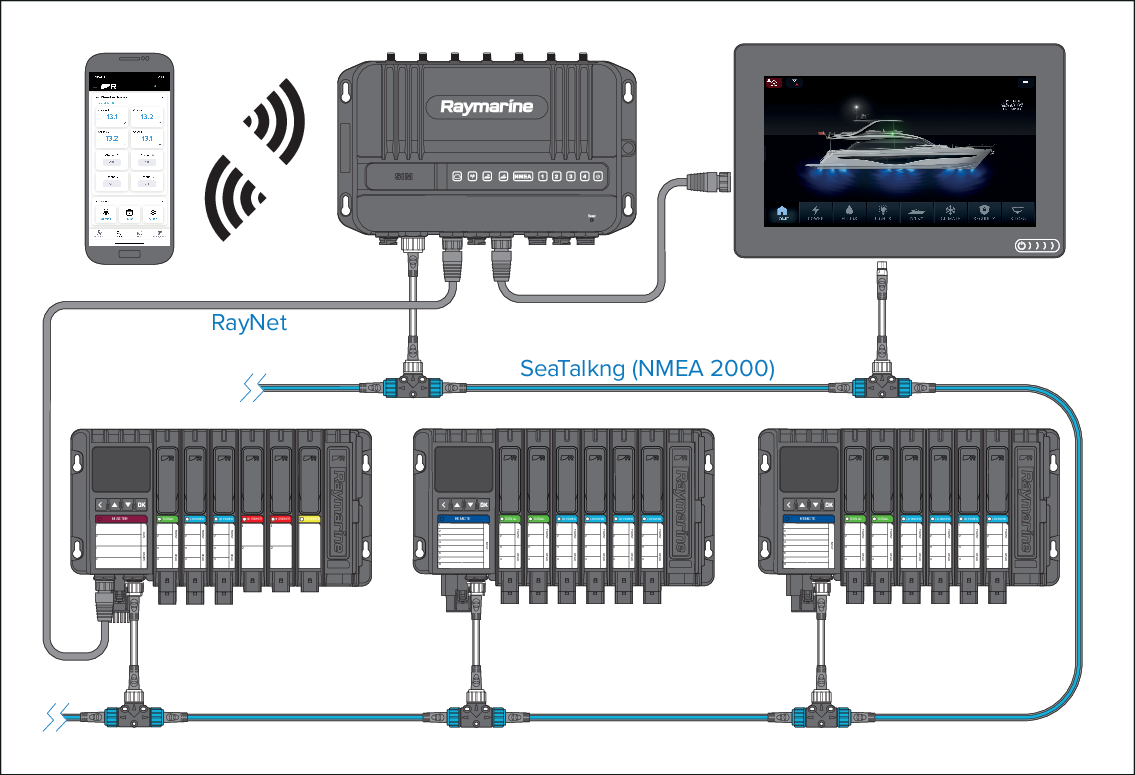

Connections YachtSense System MFD

On-boat monitoring and control can be achieved using Raymarine Axiom-Series and Axiom 2-Series chartplotters (MFDs) or the Raymarine app installed on a mobile phone or tablet.

Off-boat (remote) monitoring and control can be achieved using the Raymarine app running on a compatible mobile phone or tablet. Off-boat monitoring and control also requires:

  • A Premium subscription to the Raymarine app.

  • Your system to have an active Internet connection.

YachtSense ecosystemThe full YachtSense ecosystem consists of:

  • YachtSense Link-Series YachtSense Link router

  • YachtSense DCS-Series Digital Control System, running Release 2 software (or later)

  • Raymarine app.

  • Premium app subscription (required for off-boat connectivity).

  • Axiom-Series/Axiom 2-Series chartplotter (MFD).

Note

  • The YachtSense Link-Series YachtSense Link router must be connected to the same SeaTalk NG backbone as the YachtSense DCS-Series Digital Control System, and any chartplotters (MFDs).

  • The router must also have a RayNet connection to the YachtSense DCS-Series Digital Control System’s Master module, and any chartplotters (MFDs).
