On-boat features

The YachtSense ecosystem provides a number of “on-boat” features that can be used whilst onboard your vessel.

YachtSense On-boat features

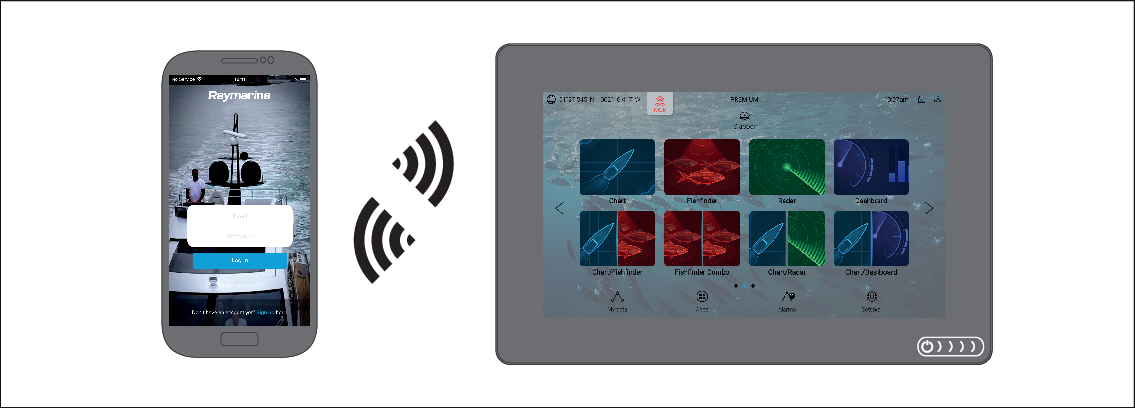

Figure 1. Raymarine app connected directly to a chartplotter (MFD)

The following features are available when using the Raymarine app on a mobile device that is connected directly to an Axiom-Series/Axiom 2-Series chartplotter’s (MFD’s) Wi-Fi Access Point:

  • Stream and control the display.

  • Download and transfer LightHouse Charts charts to a memory card, or the chartplotter’s (MFD’s) internal storage.

  • Transfer files such as backups of waypoints and settings, images or videos between your mobile device and the chartplotter (MFD).

  • View NMEA 2000 data.

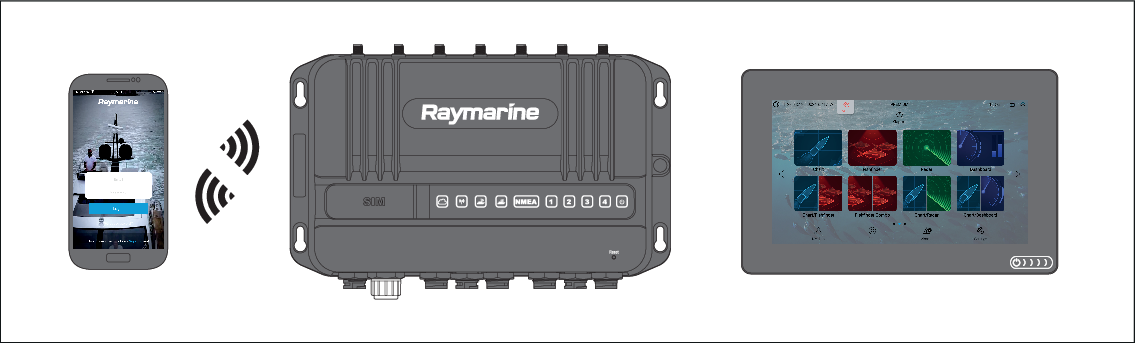

Figure 2. Raymarine app connected to a YachtSense Link-Series YachtSense Link router

The following features are available when using the Raymarine app on a mobile device that is connected to the YachtSense Link-Series YachtSense Link router’s Wi-Fi Access Point:

  • Stream and control any chartplotter (MFD) on the network.

  • Download and transfer LightHouse Charts charts to a memory card or the chartplotter’s (MFD’s) internal storage.

  • Transfer files such as backups of waypoints and settings, images or videos between your mobile device and the chartplotter (MFD).

  • View NMEA 2000 data.

  • Voltage monitoring of devices connected to the router’s input channels. The router’s web interface can also be used to monitor input channels.

  • Control of devices connected to the router’s output channels. The router’s web interface can also be used to control output channels.

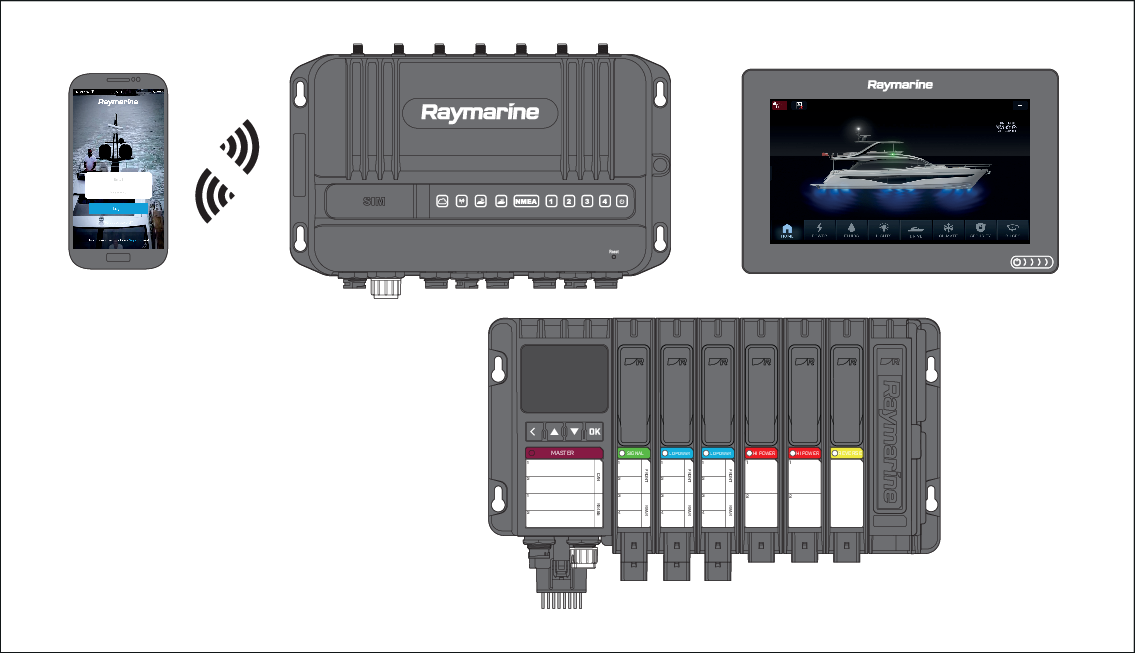

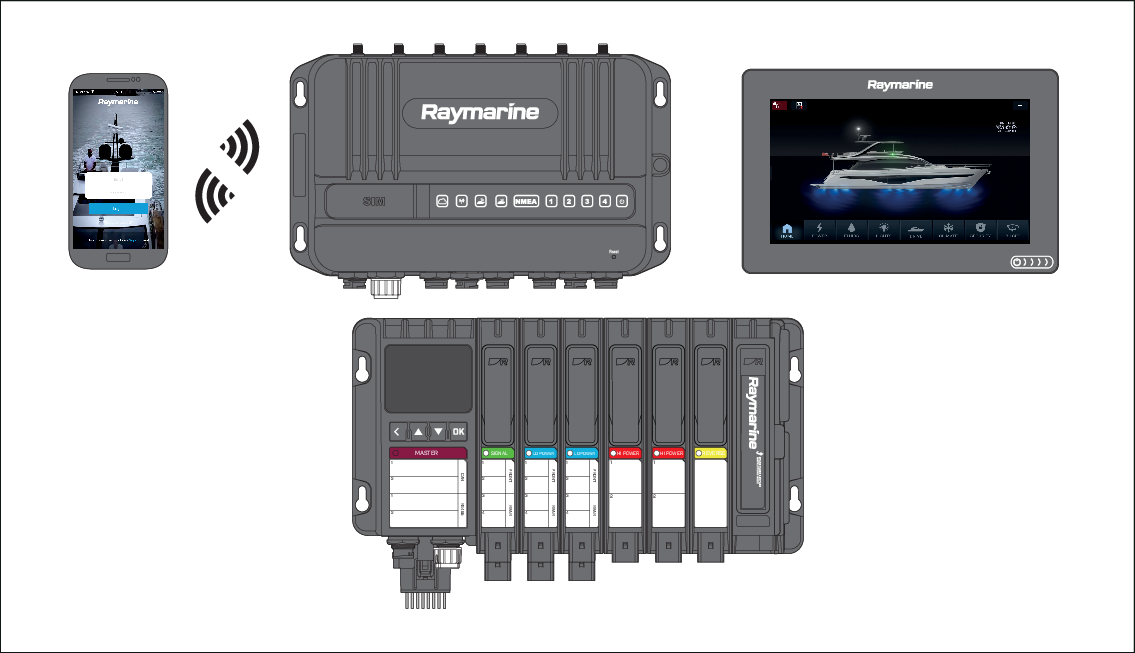

Figure 3. Raymarine app connected to a YachtSense Link-Series YachtSense Link router with a YachtSense DCS-Series Digital Control System

The following features are available when using the Raymarine app on a mobile device that is connected to the YachtSense Link-Series YachtSense Link router’s Wi-Fi Access Point on systems that include a YachtSense DCS-Series Digital Control System:

  • Stream and control any chartplotter (MFD) on the network.

  • Download and transfer LightHouse Charts charts to a memory card or to the chartplotter’s (MFD’s) internal storage.

  • Transfer files such as waypoint and settings backups, images or videos between your mobile device and the chartplotter (MFD).

  • View NMEA 2000 data. (The range of data that can be viewed is dependent on the specific configuration and design of your YachtSense ecosystem and the associated Raymarine app.)

  • Voltage monitoring of devices connected to the router’s input channels. The router’s web interface can also be used to monitor input channels.

  • Control of devices connected to the router’s output channels. The router’s web interface can also be used to control output channels.

  • Monitoring and control of vessel systems and devices connected to the YachtSense DCS-Series Digital Control System input and output channels (input and output channels can also be monitored and controlled using a chartplotter (MFD), or directly from the Master or Remote module).

Note

The YachtSense DCS-Series Digital Control System requires a specific configuration and app page design for the Raymarine app. Contact an authorized Raymarine dealer or the organization that configured your system for advice.
