Wired internet connection

The router can connect to the internet using a wired connection to a Wide Area Network (WAN) such as a broadband satellite internet system or a hard wired marina connection.

Note

  • The router must be connected to the WAN using RayNet port 4 NET 4 network connection.

  • The router must be configured to allow the NET 4 network connection to be used for WAN. For configuration details refer to: Configuring a wired internet connection

Wired internet connectionWANThe YachtSense Link router connects to the WAN using a RayNet to RJ45 cable.

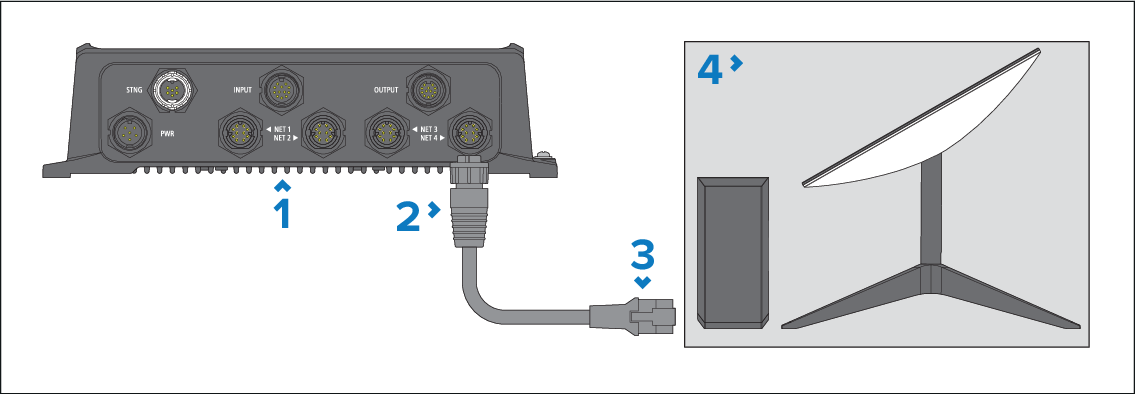

Figure 1. Example WAN connection

  1. YachtSense Link router.

  2. RayNet connection to the NET 4 Ethernet connection.

  3. RJ45 connection to WAN.

  4. WAN (e.g.: Broadband satellite internet system).
