Input cable wiring

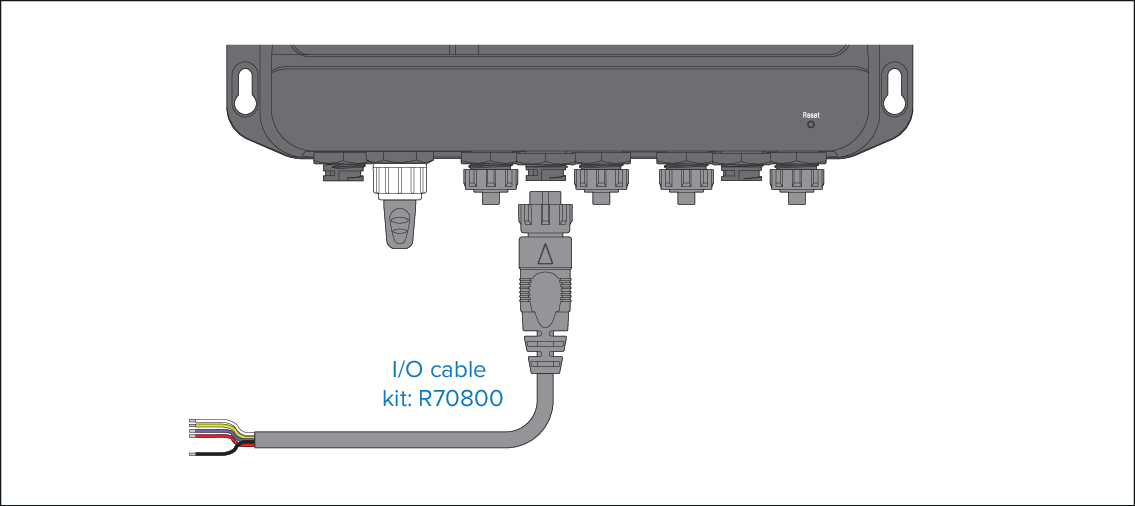

The router’s I/O channels 1 to 4 are input channels. The supplied input cable (included in kit: R70800) must be used to connect devices to the router's input connector.

ConnectionsInput channelsInput channels

Important

  • The negative power wire (0 V return) of the YachtSense™ Link’s power cable must be connected to the same power supply negative as all connected input devices.

  • Each device must have a positive supply connection to a positive channel wire on the input cable and a negative supply connection to the input cable’s common negative wire.

Input cable signal wires

  • White = Channel 1 + (positive)

  • Yellow = Channel 2 + (positive)

  • Purple = Channel 3 + (positive)

  • Red = Channel 4 + (positive)

  • Black = Common - (negative)

The input channels can be monitored from the YachtSense™ Link web interface or from the Raymarine app.
