Connections overview

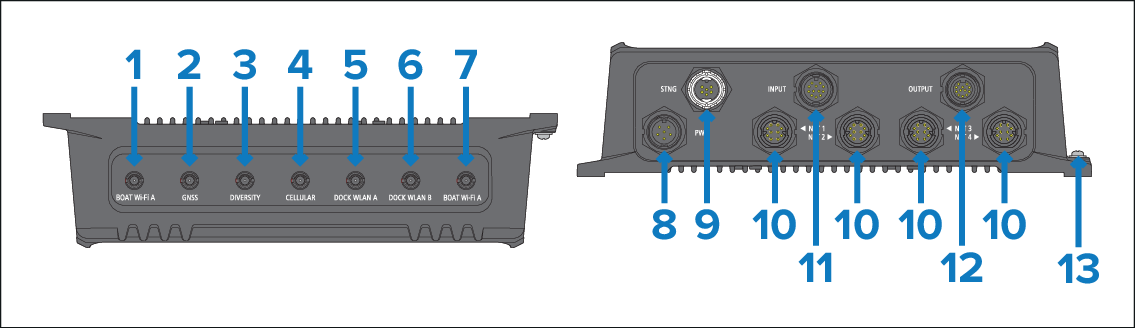

The YachtSense™ Link includes the following connections:

ConnectionsYachtSense LinkOverview
Note

  • The router is supplied with protective caps fitted to the antenna connections, RayNet connections, Input and Output connections, and the SeaTalkng® connection.

  • The protective caps should remain in place until connections are made. If a connection is not required then the protective cap should not be removed.

  1. Boat Wi-Fi A (Internal boat Wi-Fi antenna connection)

  2. GNSS (GPS/GLONASS antenna connection)

  3. Diversity (Secondary cellular antenna connection)

  4. Cellular (Primary cellular antenna connection)

  5. Dock WLAN A (External dock Wi-Fi antenna connection)

  6. Dock WLAN B (External dock Wi-Fi antenna connection)

  7. Boat Wi-Fi B (Internal boat Wi-Fi antenna connection)

  8. Power connection

  9. SeaTalkng® connection

  10. RayNet connections

  11. Input connections

  12. Output connections

  13. Dedicated grounding connection — this MUST be connected to a suitable grounding point; refer to: Ground connection
