Reverse power module connections
The Reverse power module is a digital output module, and can be used to drive devices such as hydraulic pumps or actuators which require the motor to drive forwards and in reverse.
Channel capabilities:
20A reversible drive module
Over current protection
Under current detection
Voltage protection up to 32 V dc
Operation modes:
Forward
Reverse
Braking
Free wheeling

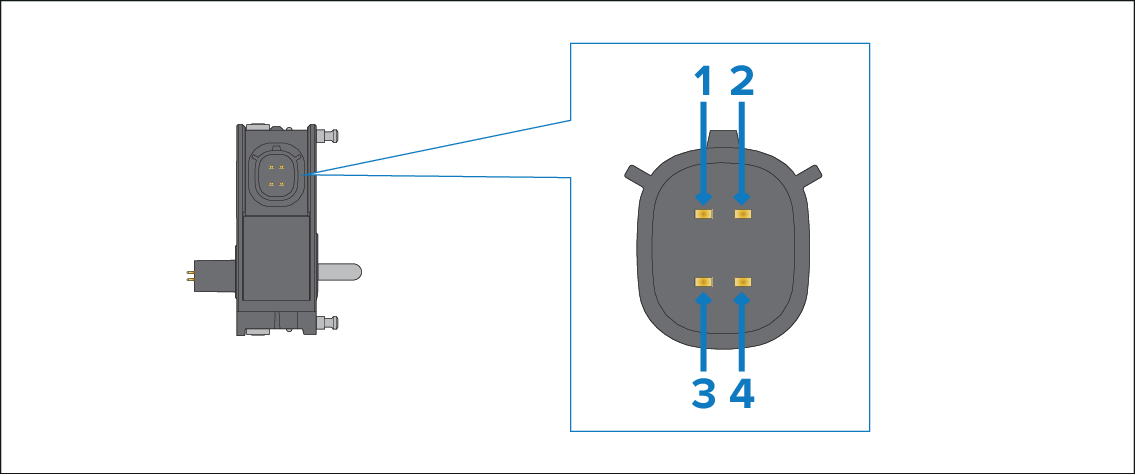

Reverse power moduleOutputConnectionsReverse power
Signal |
Signal |
||
|---|---|---|---|
1 |
CH1 A |
2 |
CH1 B |
3 |
Not connected |
4 |
Not connected |
The module’s default channel direction is CH1–A to positive and CH1–B to negative.
The negative power cable (0 V return) of the system must be connected to the same battery negative as all input and output devices that are being controlled or monitored by that system.
Each load must have both a supply and return connection to the module.

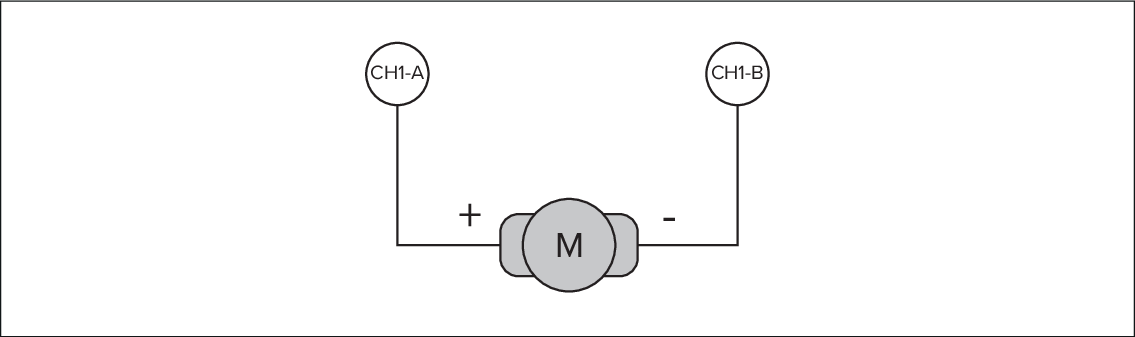

Figure 1. Example — Motor connection
